Java Collection framework overview

In this article, we will discuss on Java collection framework (JCF) overview and quick pointers about each important collection classes

Refer Java Collection Interview question and answers

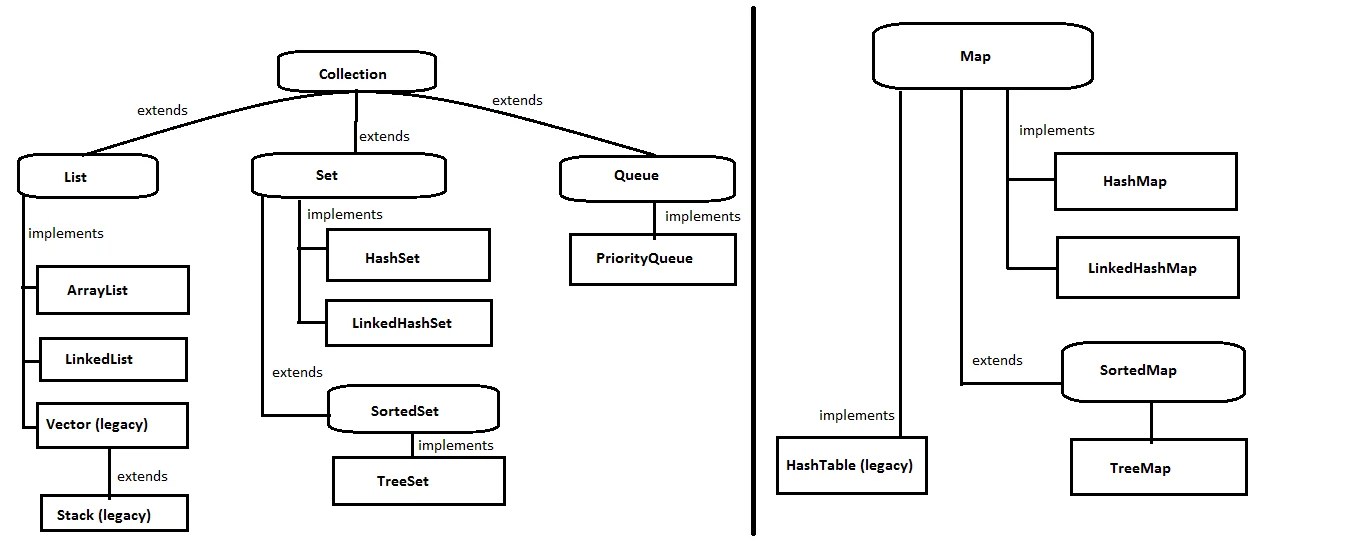

Java Collection framework hierarchy

1-Java-collection-framework-hierarchy-overview

Source: Team BenchResources.Net

Read more about Collection framework



ArrayList (java.util.ArrayList)

  • extends java.util.AbstractList and implements java.util.List
  • uses dynamic array to store elements inside ArrayList
  • size increases by 50% of current array size when ArrayList exceeds its capacity
  • allows to insert/add duplicate elements
  • maintains insertion order
  • accessing elements is faster (as we can use index to access any elements)
  • manipulation i.e.; delete is very slow due to shifting of elements
  • ArrayList is non-synchronized

Read more about ArrayList class



LinkedList (java.util.LinkedList)

  • extends java.util.AbstractList and implements java.util.List & java.util.Deque
  • uses dynamic array to store elements inside LinkedList
  • allows to insert/add duplicate elements
  • maintains insertion order
  • manipulation i.e.; delete is very faster as no shifting is required (the links break and new link is formed while deleting any element from LinkedList)
  • LinkedList is non-synchronized

Read more about LinkedList class and difference between ArrayList v/s LinkedList



Vector (java.util.Vector)

  • extends java.util.AbstractList and implements java.util.List & java.util.Deque
  • uses grow-able array to store elements
  • size increases by 100% of current array size when Vector exceeds its capacity
  • allows to insert/add duplicate elements
  • maintains insertion order
  • Vector is legacy and it is synchronized

Read more about Vector class



Vector v/s ArrayList

Vector ArrayList
Vector is legacy (including other 4 viz., HashTable, Stack, Dictionary, Properties) ArrayList is introduced in Java 1.2
All legacy collection classes are synchronized, thus Vector is synchronized  ArrayList is not synchronized (need to make sure while working in multi-threaded environment)
Performance-wise vector is slower comparing with ArrayList due to synchronization This is comparatively faster as it is non-synchronized
Vector increases its size by 100% of current array when its capacity exceeds ArrayList increases its size by 50% of current array when its capacity exceeds
Both Iterator & Enumeration can be used to iterate items/elements inside Vector Only Iterator is allowed to iterate items/elements inside ArrayList

Read more about ArrayList v/s Vector



HashSet (java.util.HashSet)

  • extends java.util.AbstractSet and implements java.util.Set
  • uses hashtable to store elements inside HashSet
  • allows only unique elements (doesn’t allow duplicates, if any duplicate is encountered then it is overridden)
  • insertion order is not maintained i.e.; items/elements order is random while iterating
  • permits null element
  • HashSet is non-synchronized
  • But it can be easily synchronized using Collections class i.e.; Collections.synchronizedSet(hashSet)
  • HashSet is fail-fast –> throws ConcurrentModificationException is modified by any other means than HashSet’s own remove() method

Read more about HashSet class



LinkedHashSet (java.util.LinkedHashSet)

  • extends java.util.HashSet and implements java.util.Set
  • allows only unique elements (doesn’t allow duplicates, if any duplicate is encountered then it is overridden)
  • allows null element (if more than one is inserted, still it will contain only one null element)
  • insertion order is maintained (in the order they are inserted)

Read more about LinkedHashSet class and difference between HashSet v/s LinkedHashSet



TreeSet (java.util.TreeSet)

  • extends java.util.SortedSet and implements java.util.NavigableSet
  • allows only unique elements (doesn’t allow duplicates, if any duplicate is encountered then it is overridden)
  • allows null element (if more than one is inserted, still it will contain only one null element)
  • It sort the elements and maintains ascending order

Read more about TreeSet class



List v/s Set

  • List allows duplicate items/elements
  • Set allows only unique items/elements (if same element inserted again, still it will be contain just one element with that value)

Read more about List v/s Set



PriorityQueue (java.util.PriorityQueue)

  • Maintains FIFO order i.e.; orders in the PriorityQueue are in FIFO fashion
  • FIFO –> First-In First-Out
  • Important methods of PriorityQueue is poll(), peek(), remove(), head()

Read more about PriorityQueue class



HashMap (java.util.HashMap)

  • extends java.util.AbstractMap and implements java.util.Map
  • HashMap stores key\value pairs
  • allows only unique elements
  • maximum of only-one null key is allowed (but it can have any number of null values corresponding to key)
  • maintains no order
  • HashMap is not synchronized
  • But it can be easily synchronized using Collections class i.e.; Collections.synchronizedMap(hashMap)

Read more about HashMap class



LinkedHashMap (java.util.LinkedHashMap)

  • extends java.util.HashMap and implements java.util.Map
  • LinkedHashMap stores key\value pairs
  • allows only unique elements
  • maximum of only-one null key is allowed (but it can have any number of null values corresponding to key)
  • maintains insertion order (based on Key)
  • LinkedHashMap is not synchronized
  • Note: very similar to HashMap except maintaining insertion order

Read more about LinkedHashMap class and difference between HashMap v/s LinkedHashMap



TreeMap (java.util.TreeMap)

  • extends java.util.AbstractMap and implements java.util.NavigableMap
  • TreeMap stores key\value pair
  • allows only unique elements
  • Null key is not allowed (but it can have any number of null values corresponding to key)
  • maintains ascending order (based on Key)
  • TreeMap is not synchronized
  • Note: very similar to LinkedHashMap except maintaining ascending order

Read more about TreeMap class and difference between HashMap v/s LinkedHashMap v/s TreeMap



Hashtable (java.util.Hashtable)

  • extends java.util.Dictionary and implements java.util.Map
  • HashTable stores key\value pairs
  • allows only unique elements
  • Null key is not allowed and also null value is not allowed
  • HashTable is synchronized i.e.; thread-safe
  • Doesn’t maintain order (while iterating)

Read more about Hashtable class



HashTable v/s HaspMap

HashTable HashMap
HashTable is legacy (including other 4 viz., Vector, Stack, Dictionary, Properties) HashMap is introduced in Java 1.2
All legacy collection classes are synchronized, thus HashTable is synchronized  HashMap is not synchronized (need to make sure while working in multi-threaded environment)
 Performance-wise HashTable is slower comparing with HashMap due to synchronization  This is comparatively faster, as it is non-synchronized
HashTable neither allows null key or null values  HashMap allows only one null key (although it allows multiple null values corresponding to key)
 Both Iterator & Enumeration can be used to iterate over HashTable items/elements Only Iterator is allowed to iterate over HashMap items/elements

Read more about difference between HashMap v/s Hashtable



Collection Sorting

We should always check 2 important interfaces while dealing collection framework in Java. Those are

  1. Comparable
  2. Comparator



Comparable v/s Comparator

Comparable  Comparator
Comparable belong to java.lang package Comparator belong to java.util package
Provides compareTo() method to sort items/elements

Signature: public int compareTo(T o);

Provides compare() method to sort items/elements

Signature: public int compare(T o1, T o2);

 This is used for single-sorting over the collection items/elements  This is used for multiple-sorting over the collection items/elements
Original class needs to be implement java.lang.Comparable interface

Thus affecting original class

A separate new class implements java.lang.Comparator interface

Thus, doesn’t affects original class

Static method “sort(List)” of Collections class is used to sort collection items/elements

Signature: Collections.sort(List lst);

Static method “sort(List, Comparator)” of Collections class is used to sort collection items/elements

Signature: Collections.sort(List lst, Comparator cmp);

Read more about Collections class and Comparable and Comparator and difference between Comparable v/s Comparator





Read also:



Happy Coding !!
Happy Learning !!
