RestEasy: JAX-RS web service using both (JSON + XML) example

In this article, we will learn and implement a JAX-RS Restful Web Service which consumes & produces in both XML/JSON format

JBoss RestEasy is a JAX-RS implementation for developing Restful web service in java. Once developed, it isn’t restricted to deploy only in JBoss Application Server but you can deploy in any other server like Apache Tomcat, Glassfish, Oracle Weblogic, etc

The trick is to set method/class annotated with @Produces & @Consumes with multiple formats in the form of an array-of-string. See example to understand

Here, the rest web service client needs to make sure in setting up required format in the header. Otherwise, first of the multiple formats annotated on top of method/class will be returned. Similarly, if the clients intended to send the request body in the JSON format or XML format, then it’s the responsibility of the client to set those values in the header.

Header for,
request body –> Content-Type
response –> accept

Note: Extending/combining the last two applications to support multiple formats APPLICATION_XML and APPLICATION_JSON, etc

Annotation Used

  • @Path (ws.rs.Path)
  • @GET (ws.rs.GET)
  • @POST (ws.rs.POST)
  • @PUT (ws.rs.PUT)
  • @DELETE (ws.rs.DELETE)
  • @PathParam (ws.rs.PathParam)
  • @Consumes (ws.rs.Consumes)
  • @Produces (ws.rs.Produces)
  • MediaType (ws.rs.core.MediaType)

Technology Used

  • Java 1.7
  • Eclipse Luna IDE
  • RestEasy-3.0.8.Final
  • Apache Maven 3.2.1
  • Apache Tomcat 7.0.54
  • JBoss Application Server 7.1.1.Final

Mavenize or download required jars

Add RestEasy-3.0.8.Final dependencies to pom.xml

	<properties>
		<resteasy.version>3.0.8.Final</resteasy.version>
		<resteasy.scope>compile</resteasy.scope> <!-- compile(Tomcat) / provided(JBoss) -->
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- RESTEasy JAX RS Implementation -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxrs</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Servlet Container Initializer -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-servlet-initializer</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Jackson Provider -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jackson-provider</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy JAXB Provider -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxb-provider</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- RESTEasy JAX RS Client -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-client</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

JAXB – Generating java source files from XSD

Steps to generate java-sources from XML Schema Definition (XSD)

  • configure JAXB Maven plugin in pom.xml
  • write well-defined XSD for your service
  • use maven command “mvn generate-sources” to generate java source files

Configure JAXB Maven plugin

<!-- JAXB plugin to generate-sources from XSD -->
<plugin>
	<groupId>org.codehaus.mojo</groupId>
	<artifactId>jaxb2-maven-plugin</artifactId>
	<version>1.6</version>
	<executions>
		<execution>
			<goals>
				<goal>xjc</goal><!-- xjc/generate -->
			</goals>
			<configuration>
				<outputDirectory>${basedir}/generated/java/source</outputDirectory>
				<schemaDirectory>${basedir}/src/main/resources/com/resteasy/series/xml/json/service/entities
				</schemaDirectory>
				<schemaFiles>*.xsd</schemaFiles>
				<schemaLanguage>XMLSCHEMA</schemaLanguage>
				<extension>true</extension>
				<args>
					<arg>-XtoString</arg>
				</args>
				<plugins>
					<plugin>
						<groupId>org.jvnet.jaxb2_commons</groupId>
						<artifactId>jaxb2-basics</artifactId>
						<version>0.6.4</version>
					</plugin>
				</plugins>
			</configuration>
		</execution>
	</executions>
</plugin>

Customer.xsd

Below XSD contains two elements with name “CustomerType” and “CustomerListType”

  • CustomerType contains three attributes namely customerId, name, age
  • CustomerListType which returns list of CustomerType
<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
	targetNamespace="http://benchresources.in/cdm/Customer" xmlns:tns="http://benchresources.in/cdm/Customer"
	elementFormDefault="qualified">

	<!-- player object with three attributes -->
	<xsd:element name="CustomerType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="customerId" type="xsd:int" />
				<xsd:element name="name" type="xsd:string" />
				<xsd:element name="age" type="xsd:int" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>

	<!-- an object to contain lists of players referencing above player object -->
	<xsd:element name="CustomerListType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element ref="tns:CustomerType" minOccurs="0"
					maxOccurs="unbounded" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>

</xsd:schema>

Run mvn generate-sources

Look at the generated java source files in the generated folder

CustomerType.java

package in.benchresources.cdm.customer;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "customerId",
    "name",
    "age"
})
@XmlRootElement(name = "CustomerType")
public class CustomerType {

    protected int customerId;
    @XmlElement(required = true)
    protected String name;
    protected int age;

    public int getCustomerId() {
        return customerId;
    }

    public void setCustomerId(int value) {
        this.customerId = value;
    }

    public String getName() {
        return name;
    }

    public void setName(String value) {
        this.name = value;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int value) {
        this.age = value;
    }
}

CustomerListType.java

package in.benchresources.cdm.customer;

import java.util.ArrayList;
import java.util.List;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "customerType"
})
@XmlRootElement(name = "CustomerListType")
public class CustomerListType {

    @XmlElement(name = "CustomerType")
    protected List<CustomerType> customerType;

    public List<CustomerType> getCustomerType() {
        if (customerType == null) {
            customerType = new ArrayList<CustomerType>();
        }
        return this.customerType;
    }
}

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

  • src/test/java –> test related files, mostly JUnit test cases
  • src/main/java –> create java source files under this folder
  • src/main/resources –> all configuration files placed here
  • src/test/resources –> all test related configuration files placed here
  • Maven Dependencies or Referenced Libraries –> includes jars in the classpath
  • WEB-INF under webapp –> stores web.xml & other configuration files related to web application

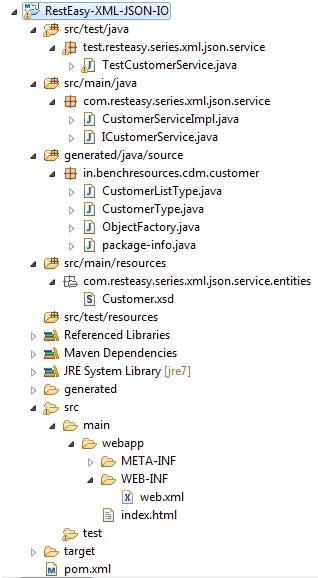

Project Structure (Package Explorer view in Eclipse)

1_RestEasy-XML-JSON-IO_Project_Structure_In_Eclipse

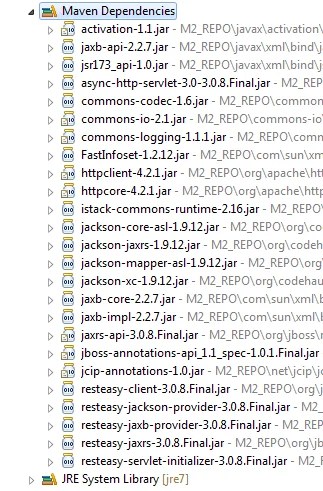

Jars Libraries Used in the Project (Maven Dependencies)

2_RestEasy-XML-JSON-IO_Jars_In_Classpath

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for RestEasy JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

  • Like any JEE web framework register org.jboss.resteasy.plugins.server.servlet.HttpServletDispatcher with servlet container
  • http requests with URL pattern “/resteasy/*” will be sent to the registered servlet called “javax.ws.rs.core.Application” i.e.; HttpServletDispatcher (org.jboss.resteasy.plugins.server.servlet.HttpServletDispatcher)
  • set resteasy.servlet.mapping.prefix as <context-param>, if your servlet-mapping has a url-pattern anything other than “/*”. In this example, set “/resteasy”
  • if not set, then you will end up with 404 not found error
  • set resteasy.resources as <param-name> with comma delimited list of fully qualified JAX-RS resource class names you want to register as <param-value> using global <context-param>
  • <welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>RestEasy-XML-JSON-IO</display-name>

	<!-- RestEasy resource registering -->
	<context-param>
		<param-name>resteasy.resources</param-name>
		<param-value>com.resteasy.series.xml.json.service.CustomerServiceImpl</param-value>
	</context-param>

	<!-- RestEasy Servlet -->
	<servlet>
		<servlet-name>javax.ws.rs.core.Application</servlet-name>
		<servlet-class>org.jboss.resteasy.plugins.server.servlet.HttpServletDispatcher</servlet-class>
	</servlet>

	<servlet-mapping>
		<servlet-name>javax.ws.rs.core.Application</servlet-name>
		<url-pattern>/resteasy/*</url-pattern>
	</servlet-mapping>

	<!-- this is mandatory, if url-pattern is other than /* -->
	<context-param>
		<param-name>resteasy.servlet.mapping.prefix</param-name>
		<param-value>/resteasy</param-value>
	</context-param>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

</web-app>

Let’s see coding in action



URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 7.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; RestEasy-XML-JSON-IO. Initial path for this application is http://localhost:8080/RestEasy-XML-JSON-IO

We have configured “/resteasy/*” as url-pattern for the “javax.ws.rs.core.Application” servlet in web.xml and at interface-level (or say class-level) path configured is “/customerservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Customer Service interface

 Defines simple CURD operations

  • @POST – create/inserts a new resource (new customer)
  • @GET – read/selects internal resource representation based on the customerId
  • @PUT – update/modifies an internal resource representation (modify customer)
  • @DELETE – delete/removes a resource (delete customer)
  • @GET – retrieves all players (get all customers)

Let’s discuss @Produces, @Consumes and MediaType

@Consumes
Defines which MIME type is consumed by this method. For this example, exposed methods supports both XML & JSON formats i.e.; methods are annotated with @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: When Content-Type is not specified in the header, then by default it expects request body in “application/x-www-form-urlencoded”. So, Content-Type needs to be set/sent in the header

@Produces
Defines which MIME type it will produce. For this example, exposed methods produce response in both XML & JSON formats i.e.; methods are annotated with @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: By default, when invoked it returns the response in XML as it is the first string in the array. So, to get the response in the JSON format then set accept=”application/json” in the header

Most widely used Media Types are

  • MediaType.APPLICATION_XML,
  • MediaType.APPLICATION_JSON,
  • MediaType.TEXT_PLAIN,
  • MediaType.TEXT_XML,
  • MediaType.APPLICATION_FORM_URLENCODED,
  • etc

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

ICustomerService.java

package com.resteasy.series.xml.json.service;

import in.benchresources.cdm.customer.CustomerListType;
import in.benchresources.cdm.customer.CustomerType;

import javax.ws.rs.Consumes;
import javax.ws.rs.DELETE;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.PUT;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;

@Path("/customerservice")
public interface ICustomerService {

	// Basic CRUD operations for Customer Service

	// http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/addcustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-XML-JSON-IO/resteasy/customerservice/addcustomer  - JBoss AS7
	@POST
	@Path("addcustomer")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces({MediaType.APPLICATION_FORM_URLENCODED})
	public String createOrSaveNewCustomerInfo(CustomerType customerType);

	// http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/getcustomer/10001  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-XML-JSON-IO/resteasy/customerservice/getcustomer/10001  - JBoss AS7
	@GET
	@Path("getcustomer/{id}")
	@Consumes({MediaType.APPLICATION_FORM_URLENCODED})
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public CustomerType getCustomerInfo(@PathParam("id") int customerId);

	// http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/updatecustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-XML-JSON-IO/resteasy/customerservice/updatecustomer  - JBoss AS7
	@PUT
	@Path("updatecustomer")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces({MediaType.APPLICATION_FORM_URLENCODED})
	public String updateCustomerInfo(CustomerType Customer);

	// http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/deletecustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-XML-JSON-IO/resteasy/customerservice/deletecustomer  - JBoss AS7
	@DELETE
	@Path("deletecustomer")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces({MediaType.APPLICATION_FORM_URLENCODED})
	public String deleteCustomerInfo(CustomerType Customer);

	// http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/getallcustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-XML-JSON-IO/resteasy/customerservice/getallcustomer  - JBoss AS7
	@GET
	@Path("getallcustomer")
	@Consumes({MediaType.APPLICATION_FORM_URLENCODED})
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public CustomerListType getAllCustomerInfo();
}

Customer Service implementation

Implements above interface

CustomerServiceImpl.java

package com.resteasy.series.xml.json.service;

import in.benchresources.cdm.customer.CustomerListType;
import in.benchresources.cdm.customer.CustomerType;

public class CustomerServiceImpl implements ICustomerService {

	/**
	 * returns a String value with SUCCESS message after adding/saving a New Customer information
	 */
	@Override
	public String createOrSaveNewCustomerInfo(CustomerType customerType) {

		// get the player information from formal arguments and inserts into database & return playerId (primary_key)
		return "Customer information saved successfully with Customer_ID " + customerType.getCustomerId();
	}

	/**
	 * retrieves a customer information object based on the ID supplied in the formal argument using @PathParam
	 */
	@Override
	public CustomerType getCustomerInfo(int customerId) {

		// retrieve player based on the id supplied in the formal argument
		CustomerType customerType = new CustomerType();
		customerType.setCustomerId(customerId);
		customerType.setName("Captain Planet");
		customerType.setAge(40);
		return customerType;
	}

	/**
	 * returns a String value with SUCCESS message after updating customer information
	 */
	@Override
	public String updateCustomerInfo(CustomerType customerType) {

		// update customer info & return SUCCESS message
		return "Customer information updated successfully";
	}

	/**
	 * returns a String value with SUCCESS message after deleting customer information
	 */
	@Override
	public String deleteCustomerInfo(CustomerType customerType) {

		// delete customer info & return SUCCESS message
		return "Customer information deleted successfully";
	}

	/**
	 * retrieves all customer stored
	 */
	@Override
	public CustomerListType getAllCustomerInfo() {

		// create a object of type CustomerListType which takes customer objects in its list
		CustomerListType customerListType = new CustomerListType();

		CustomerType customerOne = new CustomerType();
		customerOne.setCustomerId(10025);
		customerOne.setName("Super Man");
		customerOne.setAge(37);
		customerListType.getCustomerType().add(customerOne); // add to customerListType

		CustomerType customerTwo = new CustomerType();
		customerTwo.setCustomerId(10026);
		customerTwo.setName("Batman");
		customerTwo.setAge(33);
		customerListType.getCustomerType().add(customerTwo); // add to customerListType

		return customerListType;
	}
}



Deployment

  • Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
  • Copy the war file from the target folder
  • Paste it into apache tomcat (webapps folder)
  • Start the tomcat server

Test the service !!



Testing

There are many ways to do testing

  • Copy the URL of GET service into web browser
  • Advanced REST client from Google Chrome
  • Rest client in Mozilla Firefox Add On
  • Write your own client for example, Java client using improved CloseableHttpClient from Apache
  • JDK’s in-built classes like HttpURLConnection
  • Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client
  • Using ResteasyClient, ResteasyWebTarget and Response classes from JBoss package org.jboss.resteasy.client
  • Using ClientRequest and ClientResponse classes from JBoss package org.jboss.resteasy.client



1. Using RestClient from Mozilla Firefox Add-On

Every service tested setting up header parameters “accept” & “Content-Type” in the request. First for JSON format and then XML format

First service: @POST (createOrSaveNewCustomerInfo())
URL: http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/addcustomer
Request:

{
  "customerId": 10001,
  "name": "Captain Planet",
  "age": 40
}

Content-Type: application/json
Accept: application/x-www-form-urlencoded
Response: Customer information saved successfully with Customer_ID 10001
MF_3_RestEasy-XML-JSON-IO_advanced_rest_client_addcustomer_json

Request:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<CustomerType xmlns="http://benchresources.in/cdm/Customer">
	<customerId>10001</customerId>
	<name>Captain Planet</name>
	<age>40</age>
</CustomerType>

Content-Type: application/xml
Accept: application/x-www-form-urlencoded
Response: Customer information saved successfully with Customer_ID 10001
MF_3_RestEasy-XML-JSON-IO_advanced_rest_client_addcustomer_xml



Second service: @GET (getCustomerInfo())
URL: http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/getcustomer/10001
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/json
Response:

{
  "customerId": 10001,
  "name": "Captain Planet",
  "age": 40
}

MF_4_RestEasy-XML-JSON-IO_advanced_rest_client_getcustomer_json
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/xml
Response:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<CustomerType xmlns="http://benchresources.in/cdm/Customer">
	<customerId>10001</customerId>
	<name>Captain Planet</name>
	<age>40</age>
</CustomerType>

MF_4_RestEasy-XML-JSON-IO_advanced_rest_client_getcustomer_xml

Third service: @PUT (updateCustomerInfo())
URL: http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/updatecustomer
Request:

{
  "customerId": 10001,
  "name": "Captain Planet",
  "age": 40
}

Content-Type: application/json
Accept: application/x-www-form-urlencoded
Response: Customer information updated successfully
MF_5_RestEasy-XML-JSON-IO_advanced_rest_client_updatecustomer_json

Request:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<CustomerType xmlns="http://benchresources.in/cdm/Player">
	<customerId>10001</customerId>
	<name>Captain Planet</name>
	<age>40</age>
	<matches>72</matches>
</CustomerType

Content-Type: application/xml
Accept: application/x-www-form-urlencoded
Response: Customer information updated successfully
MF_5_RestEasy-XML-JSON-IO_advanced_rest_client_updatecustomer_xml

Fourth service: @DELETE (deleteCustomerInfo())
URL: http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/deletecustomer
Request:

{
  "customerId": 10001,
  "name": "Captain Planet",
  "age": 40
}

Content-Type: application/json
Accept: application/x-www-form-urlencoded
Response: Customer information deleted successfully
MF_6_RestEasy-XML-JSON-IO_advanced_rest_client_deletecustomer_json

Request:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<CustomerType xmlns="http://benchresources.in/cdm/Player">
	<customerId>10001</customerId>
	<name>Captain Planet</name>
	<age>40</age>
	<matches>72</matches>
</CustomerType>

Content-Type: application/xml
Accept: application/x-www-form-urlencoded
Response: Customer information deleted successfully
MF_6_RestEasy-XML-JSON-IO_advanced_rest_client_deletecustomer_xml

Fifth service: @GET (getAllCustomerInfo())
URL: http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/getallcustomer
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/json
Response:

{
  "CustomerType": [
    {
      "customerId": 10025,
      "name": "Super Man",
      "age": 37
    },
    {
      "customerId": 10026,
      "name": "Batman",
      "age": 33
    }
  ]
}

MF_7_RestEasy-XML-JSON-IO_advanced_rest_client_get_all_customer_json

Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/xml
Response:

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<CustomerListType xmlns="http://benchresources.in/cdm/Customer">
	<CustomerType>
		<customerId>10025</customerId>
		<name>Super Man</name>
		<age>37</age>
	</CustomerType>
	<CustomerType>
		<customerId>10026</customerId>
		<name>Batman</name>
		<age>33</age>
	</CustomerType>
</CustomerListType>

MF_7_RestEasy-XML-JSON-IO_advanced_rest_client_get_all_customer_xml



2. Java client (RestEasy)

There are two test clients which comes from JBoss RestEasy package org.jboss.resteasy.client and org.jboss.resteasy.client.jaxrs

  1. ClientRequest and ClientResponse for invoking getCustomerInfo service
  2. ResteasyClient, ResteasyClientBuilder and ResteasyWebTarget for invoking addCustomerInfo service

Self-explanatory !!

Note: above clients can be interchanged. No restriction, only needs to set correct http request parameters or header values

TestCustomerService.java

package test.resteasy.series.xml.json.service;

import javax.ws.rs.HttpMethod;
import javax.ws.rs.client.Entity;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.jboss.resteasy.client.ClientRequest;
import org.jboss.resteasy.client.ClientResponse;
import org.jboss.resteasy.client.jaxrs.ResteasyClient;
import org.jboss.resteasy.client.jaxrs.ResteasyClientBuilder;
import org.jboss.resteasy.client.jaxrs.ResteasyWebTarget;

public class TestCustomerService {

	public static void main(String[] args) throws Exception {

		// setting & invoking first service getCustomer/45001
		System.out.println("Invoking and executing getCustomer service for customer id 45001");
		String httpGetURL = "http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/getcustomer/45001";
		String responseStringGet = testCustomerServiceForGetRequest(httpGetURL);
		System.out.println("GET >> Response String : " + responseStringGet);

		// setting & invoking second service addCustomer with XML/JSON request
		System.out.println("\n\nInvoking and executing addCustomer service with request");
		String httpPostURL = "http://localhost:8080/RestEasy-XML-JSON-IO/resteasy/customerservice/addcustomer";
		String requestStringInJson = "{"
				+ 					" \"customerId\": 45011, "
				+ 					" \"name\": \"Shin Chan\","
				+ 					"\"age\": 25 "
				+				"}";
		String requestStringInXML = "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"yes\"?>"
				+ 					"<CustomerType xmlns=\"http://benchresources.in/cdm/Customer\">"
				+ 						"<customerId>45021</customerId>"
				+ 						"<name>Nobita</name>"
				+ 						"<age>26</age>"
				+ 					"</CustomerType>";
		String responseStringPost = testCustomerServiceForPostRequest(httpPostURL, requestStringInJson);
		System.out.println("POST >> Response String : " + responseStringPost);
	}

	/**
	 * using ClientRequest and ClientResponse classes from org.jboss.resteasy.client
	 * @param httpURL
	 * @return responseString
	 * @throws Exception
	 */
	@SuppressWarnings("deprecation")
	public static String testCustomerServiceForGetRequest(String httpURL) throws Exception {

		// local variables
		ClientRequest clientRequest = null;
		ClientResponse<String> clientResponse = null;
		int responseCode;
		String responseString = null;

		try{
			clientRequest = new ClientRequest(httpURL);
			clientRequest.setHttpMethod(HttpMethod.GET);
			clientRequest.header("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			clientRequest.accept(MediaType.APPLICATION_JSON);
			clientResponse = clientRequest.get(String.class);

			responseCode = clientResponse.getResponseStatus().getStatusCode();
			System.out.println("Response code: " + responseCode);

			if(clientResponse.getResponseStatus().getStatusCode() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + clientResponse.getResponseStatus().getReasonPhrase());
			responseString = clientResponse.getEntity();
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			clientResponse.close();
			clientRequest.clear();
		}
		return responseString;
	}

	/**
	 * using ResteasyClient, ResteasyWebTarget and Response classes from org.jboss.resteasy.client
	 * @param httpURL
	 * @param requestString
	 * @return
	 */
	public static String testCustomerServiceForPostRequest(String httpURL, String requestString)  throws Exception {

		// local variables
		ResteasyClient resteasyClient = null;
		ResteasyWebTarget resteasyWebTarget = null;
		Response response = null;
		int responseCode;
		String responseString = null;

		try{
			resteasyClient = new ResteasyClientBuilder().build();
			resteasyWebTarget = resteasyClient.target(httpURL);
			//			resteasyWebTarget.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			//			resteasyWebTarget.property("accept", MediaType.APPLICATION_JSON);
			response = resteasyWebTarget.request(MediaType.APPLICATION_FORM_URLENCODED).post(Entity.entity(requestString, MediaType.APPLICATION_JSON));

			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + response.getStatusInfo().getReasonPhrase());
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex){
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
		}
		return responseString;
	}
}

Output in console

Invoking and executing getCustomer service for customer id 45001
Response code: 200
ResponseMessageFromServer: OK
GET >> Response String : {"customerId":45001,"name":"Captain Planet","age":40}


Invoking and executing addCustomer service with request
Response code: 200
ResponseMessageFromServer: OK
POST >> Response String : Customer information saved successfully with Customer_ID 45011

Download project (Tomcat Server 7.0.x)

RestEasy-XML-JSON-IO (Tomcat server) (13kB)



JBoss Deployment

  1. Update pom.xml with resteasy scope “provided” for dependencies as JBoss AS7 modules already contains these dependent jars
    <resteasy.scope>provided</resteasy.scope> <!-- compile(Tomcat) / provided(JBoss) -->

  2. Update web.xml
    web.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
    	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

    	<display-name>RestEasy-XML-JSON-IO</display-name>

    	<!-- RestEasy Servlet -->
    	<servlet-mapping>
    		<servlet-name>javax.ws.rs.core.Application</servlet-name>
    		<url-pattern>/resteasy/*</url-pattern>
    	</servlet-mapping>

    	<!-- welcome file -->
    	<welcome-file-list>
    		<welcome-file>index.html</welcome-file>
    	</welcome-file-list>

    </web-app>

  3. Rest remain the same
  4. Read through this article which explains development & deployment of RestEasy web service with JBoss Application Server in detail

Note: JBoss Application Server 7.1.1.Final comes with default RestEasy distribution with version 2.3.2.Final. So update JBoss AS7 with latest RestEasy version. Look at this article, which explains how to update default version with latest version available in the JBoss community

Download project (JBoss Application Server 7.1.1.Final)

RestEasy-XML-JSON-IO (JBoss server) (13kB)

Conclusion: With this implementation, we can say that web service request/response can be exchanged in different formats depending upon the business requirements

Happy Coding !!
Happy Learning !!

RestEasy: JAX-RS web service + Integrating with Spring framework 3.2.x
RestEasy: JAX-RS web service using JAXB + JSON example
