FileZilla Client: To access FTP Server on Windows machine

In this article, we will walk through step-by-step to access FTP server on Windows machine using below two options

  • free open source software called FileZilla
  • via Windows command prompt (cmd)



Option A) Installing FileZilla FTP Client and Accessing FTP server



Step 1: Download open source FileZilla software from here

Note: There are two things,

  1. one FileZilla server for setting up to host FTP server and
  2. another is FileZilla client to access any FTP server from Windows machine

Here, we are downloading the FileZilla client for Windows machine

1_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_download_site



Step 2: Execute “FileZilla_3.11.0.2_win32-setup.exe” setup file for FileZilla client

That is double-click on “FileZilla_3.11.0.2_win32-setup.exe” setup file from download location

Click “I Agree” in the License Agreement and follow the wizard steps

2_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_I_Agree_click



Step 3: Choose Installation Options

In this demo example, we will choose “Only for me

Click Next

3_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_Installation_Options



Step 4: Choose components to be installed along with packages it offers

Click Next

Note: Leave the default values for demo purpose, otherwise we can fine tune for our requirements

4_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_choose_components



Step 5: Browse location to be installed

Click Next

Note: Leave the default values for demo purpose; otherwise we can browse through the location depending on the space availability

5_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_Install_Location



Step 6: Finally “Install

Optionally, you can create shortcuts

Click Install

6_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_create_shortcut



Step 7: Installation is complete

Click Finish

7_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_Installation_Finish

Now FileZilla FTP client installation or setup is complete. Next step is to access FTP server using user credentials

Let’s do it !!

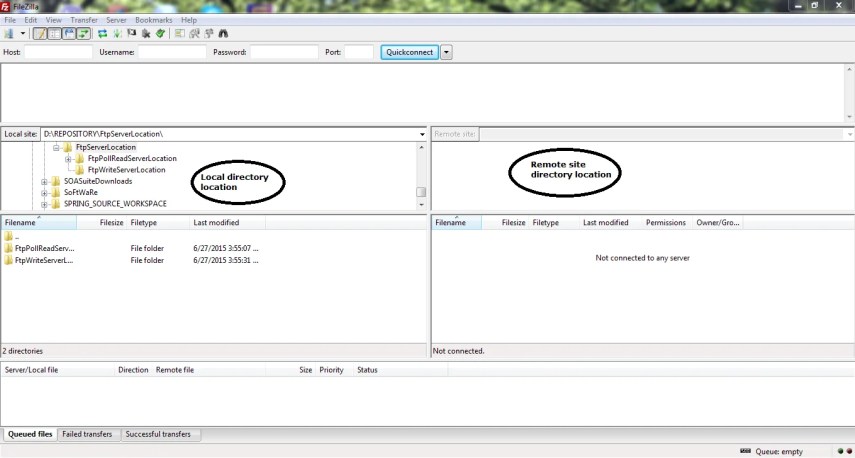

When we click “Finish” –> then FileZilla client interface opens up showing local directory listing on the Left Hand Side and empty directory listing on the Right Hand Side

Reason for empty directory listing is –> we haven’t connected to any local/remote FTP site. Once we connect to our local FTP server, then we will able to view directory listing of FTP server files under “Remote Site

8_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_client_interface



Step 8: File Menu –> Site Manager

Enter below credentials in the Site Manager under General tab –> and then click Connect button

Host: 127.0.0.1 or localhost
Port: 21 (optional)
Protocol: FTP
User: SJ
Password: sj@123 (when prompted)

9_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_new_site_manager



Step 9: Enter password for user SJ i.e.; sj@123 when prompted in the small prompt window

10_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_enter_logon_password



Step 10: Finally FTP server is connected and directories & its files are listed on the “Remote Site” (Right Hand Side)

11_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_remote_directory_explorer

That’s all; let’s move on to Option B





Option B) via Windows command prompt (cmd)



Step 1: Start windows command prompt in one of the following fashions

  • Type cmd in the windows starter –> and then Enter
  • Open run window from windows starter –> type cmd –> and then Enter

Using one of the above approaches will bring below screen capture

12_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_command_prompt



Step 2: Type below command in the console to connect to local FTP server

ftp localhost

13_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_command_prompt_ftp_localhost



Step 3: Enter user credentials

First, it will prompt for user and then for password in the subsequent step

14_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_ftp_localhost

Enter User & its corresponding Password

User: SJ
Password: sj@123

15_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_ftp_localhost_user_pass

Finally after entering necessary credentials, ftp server is “Logged on

16_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_ftp_localhost_enter_credential



Step 3: Directory listing using “ls” command

Let’s try to list files in the FTP server directory using “ls” command

Result:

  • FtpPollReadServerLocation
  • FtpWriteServerLocation

17_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_ftp_localhost_dir_listing



Step 4: Change directory using “cd” command

Command:
cd FtpPollReadServerLocation
and then listing using “ls” command

18_FileZilla_Client_to_access_Local_FTP_Server_on_Windows_7_machine_ftp_localhost_CD_dir_listing



That’s all; there are other ways to connect to Local/Remote FTP server to test/verify FTP server connection, apart from the two options we discussed in this article



References

https://filezilla-project.org/download.php?type=client



Happy Coding !!
