Jersey 2.x web service for uploading/downloading Image file + Java client

In this article, we will learn and implement JAX-RS Restful web service which is exposed to upload/download image files such as .png, .jpeg, .gif, etc formats. In this example, we will just cover one format i.e.; .png file. Similarly, you can replace @Produces for .jpeg and .gif formats

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

Download

  • Annotate download image method with @Produces(“image/png”) or @Produces(“image/jpeg”) or @Produces(“image/gif”) depending on the image format you would allow the user to download
  • Set “Content-Disposition” in the ResponseBuilder to allow downloading users to select path to download image[.png, .jpeg, .gif] file
  • Finally, build() the ResponseBuilder and return Response object with “download success” message

Upload

  • Annotate upload method with @Consumes(“multipart/form-data”)
  • Get InputStream & FormDataContentDisposition from input parameter and process to get actual filename and pass inputstream to write to file server
  • Finally, write the steams to the upload file server using basic file handling operations
  • Return “upload success” message within Response object

Annotation Used

  • @Path (ws.rs.Path)
  • @GET (ws.rs.GET)
  • @POST (ws.rs.POST)
  • @Consumes (ws.rs.Consumes)
  • @Produces (ws.rs.Produces)
  • MediaType (ws.rs.core.MediaType)

Technology Used

  • Java 1.7
  • Eclipse Luna IDE
  • Jersey-2.12
  • Jersey-multipart-2.12
  • Apache Maven 3.2.1
  • Apache Tomcat 8.0.54
  • Glassfish-4.1

Mavenize or download required jars

Add jersey-2.12 & jersey-multipart-2.12 dependencies to pom.xml

	<properties>
		<jersey.version>2.12</jersey.version>
		<jersey.scope>compile</jersey.scope>
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- Jersey core Servlet 2.x implementation -->
		<dependency>
			<groupId>org.glassfish.jersey.containers</groupId>
			<artifactId>jersey-container-servlet-core</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>

		<!-- Jersey Multipart entity providers support module -->
		<dependency>
			<groupId>org.glassfish.jersey.media</groupId>
			<artifactId>jersey-media-multipart</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath



Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

  • src/test/java –> test related files, mostly JUnit test cases
  • src/main/java –> create java source files under this folder
  • src/main/resources –> all configuration files placed here
  • src/test/resources –> all test related configuration files placed here
  • Maven Dependencies or Referenced Libraries –> includes jars in the classpath
  • WEB-INF under webapp –> stores web.xml & other configuration files related to web application

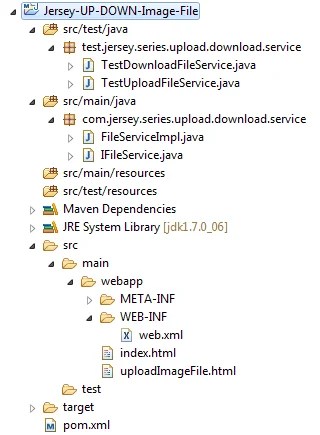

Project Structure (Package Explorer view in Eclipse)

1_Jersey-UP-DOWN-Image-File_Project_Structure_In_Eclipse

Jars Libraries Used in the Project (Maven Dependencies)

2_Jersey-UP-DOWN-Text-File_Jars_In_Classpath



Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

  • Like any JEE web framework register org.glassfish.jersey.servlet.ServletContainer with servlet container
  • http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
  • set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.upload.download.service
  • set another <init-param> for file uploading/downloading support with <param-name> as “jersey.config.server.provider.classnames” and <param-value> as “org.glassfish.jersey.media.multipart.MultiPartFeature
  • <welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>Jersey-UP-DOWN-Image-File</display-name>

	<!-- Jersey Servlet -->
	<servlet>
		<servlet-name>jersey-servlet</servlet-name>
		<servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
		<!-- Register resources and providers -->
		<init-param>
			<param-name>jersey.config.server.provider.packages</param-name>
			<param-value>com.jersey.series.upload.download.service</param-value>
		</init-param>
		<init-param>
			<param-name>jersey.config.server.provider.classnames</param-name>
			<param-value>org.glassfish.jersey.media.multipart.MultiPartFeature</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>jersey-servlet</servlet-name>
		<url-pattern>/rest/*</url-pattern>
	</servlet-mapping>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

</web-app>




Let’s see coding in action



URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-UP-DOWN-Image-File. Initial path for this application is http://localhost:8080/Jersey-UP-DOWN-Image-File

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/fileservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)



File Service interface

File service exposes two public methods one for downloading image(.png) file and another for uploading file

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

IFileService.java

package com.jersey.series.upload.download.service;

import java.io.InputStream;

import javax.ws.rs.core.Response;

import org.glassfish.jersey.media.multipart.FormDataContentDisposition;

public interface IFileService {

	public Response downloadImageFile();
	public Response uploadImageFile(InputStream fileInputStream, FormDataContentDisposition fileFormDataContentDisposition);
}

File Service implementation

Implements above interface to download/upload files

Download

It’s quite straightforward, constructing file object supplying path location for the .png file to be downloaded and setting this file object in ResponseBuilder and returning Response object

Upload

Get InputStream & FormDataContentDisposition and write to UPLOAD_FILE_SERVER using simple file handling operations. Use Content Disposition to get actual file name

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

FileServiceImpl.java

package com.jersey.series.upload.download.service;

import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;

import javax.ws.rs.Consumes;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;
import javax.ws.rs.core.Response.ResponseBuilder;

import org.glassfish.jersey.media.multipart.FormDataContentDisposition;
import org.glassfish.jersey.media.multipart.FormDataParam;

@Path("/fileservice")
public class FileServiceImpl implements IFileService {

	public static final String UPLOAD_FILE_SERVER = "D:/Demo/upload/";

	// http://localhost:8080/Jersey-UP-DOWN-Image-File/rest/fileservice/download/image
	@GET
	@Path("/download/image")
	@Produces({"image/png", "image/jpg", "image/gif"})
	public Response downloadImageFile() {

		// set file (and path) to be download
		File file = new File("D:/Demo/download/MyImageFile.png");

		ResponseBuilder responseBuilder = Response.ok((Object) file);
		responseBuilder.header("Content-Disposition", "attachment; filename=\"MyPngImageFile.png\"");
		return responseBuilder.build();
	}

	// http://localhost:8080/Jersey-UP-DOWN-Image-File/rest/fileservice/upload/images
	@POST
	@Path("/upload/images")
	@Consumes(MediaType.MULTIPART_FORM_DATA)
	public Response uploadImageFile(
			@FormDataParam("uploadFile") InputStream fileInputStream,
			@FormDataParam("uploadFile") FormDataContentDisposition fileFormDataContentDisposition) {

		// local variables
		String fileName = null;
		String uploadFilePath = null;

		try {
			fileName = fileFormDataContentDisposition.getFileName();
			uploadFilePath = writeToFileServer(fileInputStream, fileName);
		}
		catch(IOException ioe){
			ioe.printStackTrace();
		}
		finally{
			// release resources, if any
		}
		return Response.ok("File uploaded successfully at " + uploadFilePath).build();
	}

	/**
	 * write input stream to file server
	 * @param inputStream
	 * @param fileName
	 * @throws IOException
	 */
	private String writeToFileServer(InputStream inputStream, String fileName) throws IOException {

		OutputStream outputStream = null;
		String qualifiedUploadFilePath = UPLOAD_FILE_SERVER + fileName;

		try {
			outputStream = new FileOutputStream(new File(qualifiedUploadFilePath));
			int read = 0;
			byte[] bytes = new byte[1024];
			while ((read = inputStream.read(bytes)) != -1) {
				outputStream.write(bytes, 0, read);
			}
			outputStream.flush();
		}
		catch (IOException ioe) {
			ioe.printStackTrace();
		}
		finally{
			//release resource, if any
			outputStream.close();
		}
		return qualifiedUploadFilePath;
	}
}



View Technologies



<table> element within <form> tag, on click of “Upload File” button invokes upload file service method which is configured in the action attribute

uploadImageFile.html

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Jersey 2.x : File Upload</title>
</head>
<body>
	<center>
		<b>Jersey 2.x : JAX-RS Restful web service Learning</b>

<h4>Uploading files using JAX-RS Restful web service</h4>


<div style="width: 400px; border: 1px solid blue; padding: 20px; text-align: center;">


<form method="post" action="rest/fileservice/upload/images" enctype="multipart/form-data">

<table align="center" border="1" bordercolor="black" cellpadding="0" cellspacing="0">

<tr>

<td>Select File 1 :</td>


<td><input type="file" name="uploadFile" size="100" /></td>

					</tr>


<tr>

<td><input type="submit" value="Upload File" /></td>


<td><input type="reset" value="Reset" /></td>

					</tr>

				</table>

			</form>

		</div>

	</center>
</body>
</html>



Tomcat-8.0.12 Deployment

  • Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
  • Copy(ctrl+c) the war file from the target folder
  • Paste(ctrl+v) it into apache tomcat (webapps folder)
  • Start the tomcat server



Glassfish-4.1 Deployment

  • Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
  • Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
  • There are two ways to deploy war file into Glassfish-4.1
    1. Online
    2. Offline
  • Click here to understand above deployments process in detail

Test the service !!



Testing

There are many ways to do testing

  • Access html page from web browser
  • Copy the URL of GET service into web browser
  • Advanced REST client from Google Chrome
  • Rest client in Mozilla Firefox Add On
  • Write your own client for example, Java client using improved CloseableHttpClient from Apache
  • JDK’s in-built classes like HttpURLConnection
  • Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client



1. HTML page in web browser



1.1 upload file
Enter URL: http://localhost:8080/Jersey-UP-DOWN-Image-File/uploadImageFile.html
And select image(.png) file using file chooser
Click “Upload File”
3_Jersey-UP-DOWN-Image-File_file_upload_jsp_client



Result in web browser: upload success
4_Jersey-UP-DOWN-Image-File_file_upload_jsp_client_success



1.2 download image file
Enter URL: http://localhost:8080/Jersey-UP-DOWN-Image-File/rest/fileservice/download/image into web browser

Allows downloading users to open/save image file
5_Jersey-UP-DOWN-Image-File_file_download_firefox

2. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package javax.ws.rs.client for invoking Restful web service

Note: Commented lines will help out us to try (set) various http request header parameters

2.1 Upload image file

Invoking Restful web service to upload .png file

 TestUploadFileService.java

package test.jersey.series.upload.download.service;

import java.io.File;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Entity;
import javax.ws.rs.client.Invocation;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;
import org.glassfish.jersey.media.multipart.FormDataMultiPart;
import org.glassfish.jersey.media.multipart.MultiPartFeature;
import org.glassfish.jersey.media.multipart.file.FileDataBodyPart;

public class TestUploadFileService {

	public static void main(String []args) throws Exception {

		// set file upload parameters
		String httpURL = "http://localhost:8080/Jersey-UP-DOWN-Image-File/rest/fileservice/upload/images";
		File filePath = new File("D:/Demo/download/Microbiology.png");

		// invoke file upload service using above parameters
		String responseString = testUploadService(httpURL, filePath);
		System.out.println("responseString : " + responseString);
	}

	/**
	 * uploads image file using the input HTTP URL
	 * @param httpURL
	 * @param filePath
	 * @param filename
	 * @return
	 * @throws Exception
	 */
	public static String testUploadService(String httpURL, File filePath)  throws Exception {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Invocation.Builder invocationBuilder = null;
		Response response = null;
		FileDataBodyPart fileDataBodyPart = null;
		FormDataMultiPart formDataMultiPart = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			clientConfig.register(MultiPartFeature.class);
			client =  ClientBuilder.newClient(clientConfig);
			webTarget = client.target(httpURL);

			// set file upload values
			fileDataBodyPart = new FileDataBodyPart("uploadFile", filePath, MediaType.APPLICATION_OCTET_STREAM_TYPE);
			formDataMultiPart = new FormDataMultiPart();
			formDataMultiPart.bodyPart(fileDataBodyPart);

			// invoke service
			invocationBuilder = webTarget.request();
			//			invocationBuilder.header("Authorization", "Basic " + authorization);
			response = invocationBuilder.post(Entity.entity(formDataMultiPart, MediaType.MULTIPART_FORM_DATA));

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			fileDataBodyPart.cleanup();
			formDataMultiPart.cleanup();
			formDataMultiPart.close();
			response.close();
			client.close();
		}
		return responseString;
	}
}

Output in Console (upload .png file)

Response code: 200
ResponseMessageFromServer: OK
responseString : File uploaded successfully at D:/Demo/upload/Microbiology.png

2.2 Download image file

To invoke Restful web service to download .png file

TestDownloadFileService.java

package test.jersey.series.upload.download.service;

import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Invocation;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;
import org.glassfish.jersey.media.multipart.MultiPartFeature;

public class TestDownloadFileService {

	public static final String DOWNLOAD_FILE_LOCATION = "D:/Demo/test/";

	public static void main(String []args) throws IOException {

		String httpURL = "http://localhost:8080/Jersey-UP-DOWN-Image-File/rest/fileservice/download/image";
		String responseString = testDownloadService(httpURL);
		System.out.println("responseString : " + responseString);
	}

	/**
	 * downloads image file using the input HTTP URL
	 * @param httpURL
	 * @return
	 * @throws IOException
	 */
	public static String testDownloadService(String httpURL) throws IOException {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Invocation.Builder invocationBuilder = null;
		Response response = null;
		InputStream inputStream = null;
		OutputStream outputStream = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;
		String qualifiedDownloadFilePath = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			clientConfig.register(MultiPartFeature.class);
			client =  ClientBuilder.newClient(clientConfig);
			client.property("accept", "image/png");
			webTarget = client.target(httpURL);

			// invoke service
			invocationBuilder = webTarget.request();
			//			invocationBuilder.header("Authorization", "Basic " + authorization);
			response = invocationBuilder.get();

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// read response string
			inputStream = response.readEntity(InputStream.class);
			qualifiedDownloadFilePath = DOWNLOAD_FILE_LOCATION + "MyJerseyImage.png";
			outputStream = new FileOutputStream(qualifiedDownloadFilePath);
			byte[] buffer = new byte[1024];
			int bytesRead;
			while ((bytesRead = inputStream.read(buffer)) != -1) {
				outputStream.write(buffer, 0, bytesRead);
			}

			// set download SUCCES message to return
			responseString = "downloaded successfully at " + qualifiedDownloadFilePath;
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			outputStream.close();
			response.close();
			client.close();
		}
		return responseString;
	}
}

Output in Console (download .png file)

Response code: 200
ResponseMessageFromServer: OK
responseString : downloaded successfully at D:/Demo/test/MyJerseyImage.png

Conclusion: It’s quite easy to implement download & upload file functionality in JAX-RS Restful web service using simple annotations like @Produces & @Consumes on top of the service class to be exposed

In the next article, very similarly we will implement an example for uploading & downloading PDF files

Download project

Jersey-2x-UP-DOWN-Image-File (11kB)

Happy Coding !!
Happy Learning !!

Jersey 2.x web service for uploading/downloading PDF file + Java client
Jersey 2.x web service for uploading/downloading Text file + Java client
  • Yuan Guo

    In your example, the uploaded file has already been defined. how could I realize upload the image whatever I want. I mean get the image stream dynamicaly

  • Abdul Manaf C J

    Hi,

    iam deploy this project into my server. then iam upload a image using java test client. its fine. next iam using a curl command for uploading image . curl -i -X POST -H “Content-Type: multipart/form-data” -F “data=@3333.jpg” http://smarttest.gadgeon.com:9181/Jersey-UP-DOWN-Image-File/rest/fileservice/upload/images .

    But it got error . pls help me.

  • Mwesigye John Bosco

    i had spent days searching for this solution.i had mismatch in jar versioning but your article has helped me.Thank you very much

    • SJ

      Glad that it helped you !!

  • anusha pathireddy

    how to store filepath in database
