Jersey 2.x web service using @MatrixParam annotation

In this article, we will learn and implement @MatrixParam annotation in JAX-RS Restful web service. Matrix parameters are set of “key=value” pair with semicolon (;) between them

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

Difference between @QueryParam &@MatrixParam

@QueryParam: arguments are supplied in the URL with ampersand sign (&) between each “key=value” pair after the question mark (?)
@MatrixParam: arguments supplied to the URL for the invocation are separated using semicolon (;)

Sample URL for @MatrixParam
http://<server>:<port>/<context-root>/<resteasy-path>/<class-level-path>/<method-level-path>;key1=value1;key2=value2;key3=value3

Look at the above sample URL for @MatrixParam, each pair of “key=value” is separated by semicolon (;)

NOTE: You can skip any “key=value” pair from the request URL while hitting the request and in this case their default values are passed to the method invocation. For example, string – null & int – 0, etc

Annotation Used

@MatrixParam (ws.rs.MatrixParam)
@Path (ws.rs.Path)
@GET (ws.rs.GET)

Technology Used

Java 1.7
Eclipse Luna IDE
Jersey-2.12
Apache Maven 3.2.1
Apache Tomcat 8.0.54
Glassfish-4.1

Mavenize or download required jars

Add Jersey-2.12 dependencies to pom.xml

	<properties>
		<jersey.version>2.12</jersey.version>
		<jersey.scope>compile</jersey.scope>
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- Jersey core Servlet 2.x implementation -->
		<dependency>
			<groupId>org.glassfish.jersey.containers</groupId>
			<artifactId>jersey-container-servlet-core</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

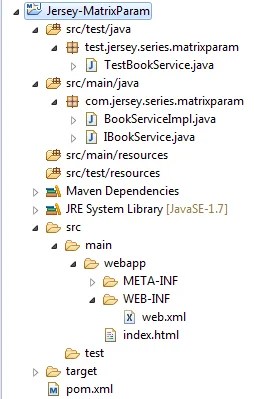

Project Structure (Package Explorer view in Eclipse)

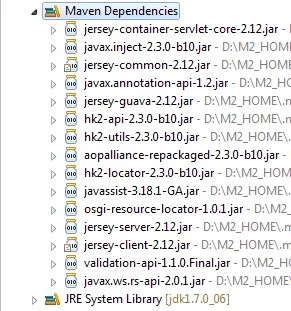

Jars Libraries Used in the Project (Maven Dependencies)

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

Like any JEE web framework register “org.glassfish.jersey.servlet.ServletContainer” with servlet container
http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
Set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.matrixparam”
<welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>Jersey-MatrixParam</display-name>

	<!-- Jersey Servlet -->
	<servlet>
		<servlet-name>jersey-servlet</servlet-name>
		<servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
		<!-- Register resources and providers -->
		<init-param>
			<param-name>jersey.config.server.provider.packages</param-name>
			<param-value>com.jersey.series.matrixparam</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>jersey-servlet</servlet-name>
		<url-pattern>/rest/*</url-pattern>
	</servlet-mapping>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

</web-app>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-MatrixParam. Initial path for this application is http://localhost:8080/Jersey-MatrixParam

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/bookservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Book Service interface

Defines two simple abstract methods

First one takes 1-argument
Second takes 3-arg arguments

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

IBookService.java

package com.jersey.series.matrixparam;

import javax.ws.rs.core.Response;

public interface IBookService {

	public Response printBookName(String bookName);
	public Response printCompleteBookDetails(String bookName, String author, String category);
}

Book Service implementation

Implements above interface returning Response object for both method

Defines two simple methods

First method takes one-argument using @MatrixParam annotation (single parameter)
URL: http://localhost:8080/Jersey-MatrixParam/rest/bookservice/book;name=Biochemistry
Second method takes three-arguments using @MatrixParam annotation (multiple parameters)
URL: http://localhost:8080/Jersey-MatrixParam/rest/bookservice/bookdetail;name=Revenge-of-Microbes;author=Abigail;category=Microbiology

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

BookServiceImpl.java

package com.jersey.series.matrixparam;

import javax.ws.rs.Consumes;
import javax.ws.rs.GET;
import javax.ws.rs.MatrixParam;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

@Path("bookservice")
public class BookServiceImpl implements IBookService {

	// http://localhost:8080/Jersey-MatrixParam/rest/bookservice/book;name=Biochemistry
	@GET
	@Path("book")
	@Consumes({MediaType.TEXT_PLAIN})
	@Produces({MediaType.TEXT_PLAIN})
	public Response printBookName(@MatrixParam("name") String bookName) {

		String bookDetail = "Book name is " + bookName;
		return Response.status(200).entity(bookDetail).build();
	}

	// http://localhost:8080/Jersey-MatrixParam/rest/bookservice/bookdetail;name=Revenge-of-Microbes;author=Abigail;category=Microbiology
	@GET
	@Path("bookdetail")
	@Consumes({MediaType.TEXT_PLAIN})
	@Produces({MediaType.TEXT_PLAIN})
	public Response printCompleteBookDetails(
			@MatrixParam("name") String bookName,
			@MatrixParam("author") String author,
			@MatrixParam("category") String category) {

		String bookCompleteDetail = "Book complete detail [Name=" + bookName +  ", Author=" + author + ", Category=" + category + "]";
		return Response.status(200).entity(bookCompleteDetail).build();
	}
}

Tomcat-8.0.12 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Copy(ctrl+c) the war file from the target folder
Paste(ctrl+v) it into apache tomcat (webapps folder)
Start the tomcat server

Glassfish-4.1 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
There are two ways to deploy war file into Glassfish-4.1
1. Online
2. Offline
Click here to understand above deployments process in detail

Test the service !!

Testing

There are many ways to do testing

Access html page from web browser
Copy the URL of GET service into web browser
Advanced REST client from Google Chrome
Rest client in Mozilla Firefox Add On
Write your own client for example, Java client using improved CloseableHttpClient from Apache
JDK’s in-built classes like HttpURLConnection
Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client

1. Hit the web browser with GET URL

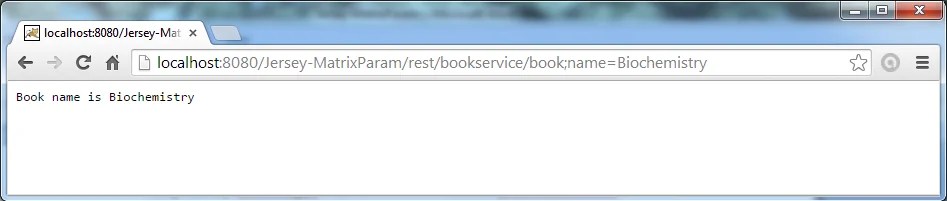

First Method:
Enter url http://localhost:8080/Jersey-MatrixParam/rest/bookservice/book;name=Biochemistry

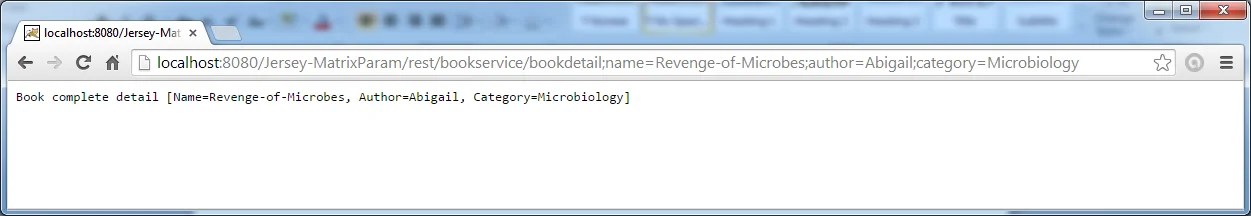

Second Method:
Enter url http://localhost:8080/Jersey-MatrixParam/rest/bookservice/bookdetail;name=Revenge-of-Microbes;author=Abigail;category=Microbiology

2. Using Advanced Rest client from Google Chrome

First Method:
Enter url http://localhost:8080/Jersey-MatrixParam/rest/bookservice/book;name=Biochemistry

Second Method:
Enter url http://localhost:8080/Jersey-MatrixParam/rest/bookservice/bookdetail;name=Revenge-of-Microbes;author=Abigail;category=Microbiology

3. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package javax.ws.rs.client for invoking Restful web service

Note: Commented lines will help out us to various request header parameters

TestBookService.java

package test.jersey.series.queryparam;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Invocation.Builder;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;

public class TestBookService {

	public static void main(String[] args) {

		// setting & invoking first request
		System.out.println("Executing first service with single parameter");
		String httpURL = "http://localhost:8080/Jersey-QueryParam/rest/bookservice/book?name=Neuroscience";
		String responseString = testBookService(httpURL);
		System.out.println("responseString : " + responseString);

		// setting & invoking second request
		System.out.println("\n\nExecuting second service with multiple parameter");
		String httpURL3 = "http://localhost:8080/Jersey-QueryParam/rest/bookservice/bookdetail?name=Medical-Microbiology&author=Brooks&category=Microbiology";
		String responseString3 = testBookService(httpURL3);
		System.out.println("responseString : " + responseString3);
	}

	public static String testBookService(String httpURL) {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Builder builder = null;
		Response response = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			client =  ClientBuilder.newClient(clientConfig);
			//			client.property("Content-Type", MediaType.TEXT_PLAIN);
			//			client.property("accept", MediaType.TEXT_PLAIN);
			webTarget = client.target(httpURL);

			// invoke service
			builder = webTarget.request(MediaType.TEXT_PLAIN).accept(MediaType.TEXT_PLAIN);
			response = builder.get();

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
			client.close();
		}
		return responseString;
	}
}

Output in console

Executing first service with single parameter
Response code: 200
ResponseMessageFromServer: OK
responseString : Book name is Neuroscience


Executing second service with multiple parameter
Response code: 200
ResponseMessageFromServer: OK
responseString : Book complete detail [Name=Medical-Microbiology, Author=Brooks, Category=Microbiology]

Conclusion: The URL of the @MatrixParam annotation is much simpler compared to the @QueryParam as there are no question mark (?) and ampersand (&)and this way readability improves much better

Download project

Jersey-2x-MatrixParam (8kB)

Happy Coding !!
Happy Learning !!

BenchResources.Net

Java tutorial for beginners

Jersey 2.x web service using @MatrixParam annotation

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

1. Hit the web browser with GET URL

2. Using Advanced Rest client from Google Chrome

3. Java client

TestBookService.java

Output in console

Download project

Related

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

1. Hit the web browser with GET URL

2. Using Advanced Rest client from Google Chrome

3. Java client

TestBookService.java

Output in console

Download project

Related

Related posts:
