Jersey 2.x web service using @FormParam annotation

In this article, we will learn and implement @FormParam annotation in JAX-RS Restful web service. @FormParam binds the value/s of form parameter sent by the client in the POST request into formal arguments of Java method

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

@FormParam v/s @QueryParam

Use @FormParam for POST request when using form and prefer @QueryParam for GET requests

Annotation Used

@FormParam (javax.ws.rs.FormParam)
@Path (javax.ws.rs.Path)
@GET (javax.ws.rs.GET)

Technology Used

Java 1.7
Eclipse Luna IDE
Jersey-2.12
Apache Maven 3.2.1
Apache Tomcat 8.0.54
Glassfish-4.1

Mavenize or download required jars

Add Jersey-2.12 dependencies to pom.xml

	<properties>
		<jersey.version>2.12</jersey.version>
		<jersey.scope>compile</jersey.scope>
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- Jersey core Servlet 2.x implementation -->
		<dependency>
			<groupId>org.glassfish.jersey.containers</groupId>
			<artifactId>jersey-container-servlet-core</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

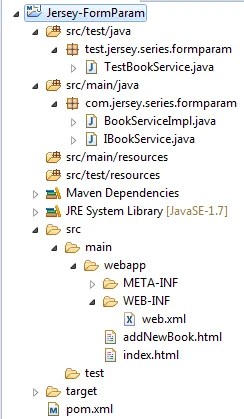

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

Like any JEE web framework register “org.glassfish.jersey.servlet.ServletContainer” with servlet container
http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
Set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.formparam”
<welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>Jersey-FormParam</display-name>

	<!-- Jersey Servlet -->
	<servlet>
		<servlet-name>jersey-servlet</servlet-name>
		<servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
		<!-- Register resources and providers -->
		<init-param>
			<param-name>jersey.config.server.provider.packages</param-name>
			<param-value>com.jersey.series.formparam</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>jersey-servlet</servlet-name>
		<url-pattern>/rest/*</url-pattern>
	</servlet-mapping>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

</web-app>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-FormParam. Initial path for this application is http://localhost:8080/Jersey-FormParam

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/bookservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Book Service interface

Defines just one simple abstract method to add new book information

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

IBookService.java

package com.jersey.series.formparam;

import javax.ws.rs.core.Response;

public interface IBookService {

	public Response addBookInfo(String bookName, String author, String category);
}

Book Service implementation

Implements above interface returning Response object

A simple method which takes three-arguments using @FormParam annotation (multiple parameters)
URL: http://localhost:8080/Jersey-FormParam/rest/bookservice/bookinfo

POST request from the form will invokes this method when the relative action (path) is set to “rest/bookservice/bookinfo”

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

BookServiceImpl.java

package com.jersey.series.formparam;

import javax.ws.rs.FormParam;
import javax.ws.rs.POST;
import javax.ws.rs.Path;
import javax.ws.rs.core.Response;

@Path("bookservice")
public class BookServiceImpl implements IBookService {

	// http://localhost:8080/Jersey-FormParam/rest/bookservice/bookinfo
	@POST
	@Path("/bookinfo")
	public Response addBookInfo(
			@FormParam("name") String bookName,
			@FormParam("author") String author,
			@FormParam("category") String category){

		String bookInfo = "Book [Name=" + bookName +  ", Author=" + author + ", Category=" + category + "] added to the database";
		return Response.status(200).entity(bookInfo).build();
	}
}

View Technologies

index.html (\src\main\webapp\index.html)
Start up page which has anchor link to “addNewBook.html” with value Click here à redirects to addNewBook.html page

<!DOCTYPE html>
<html>
<head>
<meta charset="ISO-8859-1">
<title>Jersey-FormParam</title>
</head>
<body style="align: center">
	<b>Welcome to Jersey 2.x web service learnings</b>
	<br />
	<a href="https://jersey.java.net/">Jersey Home Page</a>
	<br />
	<a href="https://jersey.java.net/documentation/latest/index.html">Jersey
		documentation</a>
	<br />
	<a href="https://jersey.java.net/download.html">Latest Jersey
		bundle</a>
	<br />
	<br />
	<br />
	<br />
	<a href="addNewBook.html">Click here </a>to add new book
</body>
</html>

addNewCustomer.html (\src\main\webapp\addNewBook.html)
Simple HTML form with POST action (method) which takes three inputs from the end user to add new book information to the database

<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Jersey - @FormParam</title>
</head>
<body>
	<center>
		<b>Welcome to the JAX-RS Restful web service Learning</b>
		<h4>An Example on @FormParam Annotation</h4>
		<form method="post" action="rest/bookservice/bookinfo">
			<table>
				<tr>
					<td>Book Name:</td>
					<td><input type="text" name="name" /></td>
				</tr>
				<tr>
					<td>Author:</td>
					<td><input type="text" name="author" /></td>
				</tr>
				<tr>
					<td>Category:</td>
					<td><input type="text" name="category" /></td>
				</tr>
				<tr>
					<td colspan="1"><input name="submit" type="submit"
						value="Add New Book" /></td>
					<td colspan="1"><input name="reset" type="reset" value="Reset" /></td>
				</tr>
			</table>
		</form>
	</center>
</body>
</html>

Tomcat-8.0.12 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Copy(ctrl+c) the war file from the target folder
Paste(ctrl+v) it into apache tomcat (webapps folder)
Start the tomcat server

Glassfish-4.1 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
There are two ways to deploy war file into Glassfish-4.1
1. Online
2. Offline
Click here to understand above deployments process in detail

Test the service !!

Testing

Access the default URL http://localhost:8080/Jersey-FormParam which has a anchor link to addNewBook.html page, apart from some basic links to Jersey pages

Click on the link, you will be redirected to addNewBook.html page which displays fields for entering Book-Name, Author & Category to capture new book information and store it in the database

Or else directly access the URL for the same page
http://localhost:8080/Jersey-FormParam/addNewBook.html –> displays below page

Enter details of book information like

Book Name             : Diagnostic Microbiology
Author                    : Patricia Tille
Category                 : Microbiology

And click “Add New Book” button

Clicking “Add New Book” button will invokes POST method configured in the form tag with action=“rest/bookservice/bookinfo”

On successful execution of the request, a success message is returned to the user as shown below

2. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package javax.ws.rs.client for invoking Restful web service

Note: Commented lines will help out us to various request header parameters

TestBookService.java

package test.jersey.series.formparam;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Entity;
import javax.ws.rs.client.Invocation.Builder;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.MultivaluedHashMap;
import javax.ws.rs.core.MultivaluedMap;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;

public class TestBookService {

	public static void main(String[] args) {

		// setting & invoking first request
		System.out.println("Executing POST request for @FormParameter");
		String url = "http://localhost:8080/Jersey-FormParam/rest/bookservice/bookinfo";
		String responseString = testFormParameterForPost(url);
		System.out.println("Response String for @FormParam : " + responseString);
	}

	public static String testFormParameterForPost(String httpURL) {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		MultivaluedMap<String, String> formParameters = null;
		Builder builder = null;
		Response response = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			client =  ClientBuilder.newClient(clientConfig);
			//			client.property("Content-Type", MediaType.TEXT_PLAIN);
			//			client.property("accept", MediaType.TEXT_PLAIN);
			webTarget = client.target(httpURL);

			//
			formParameters = new MultivaluedHashMap<String, String>();
			formParameters.add("name", "Diagnostic Microbiology");
			formParameters.add("author", "Patricia Tille");
			formParameters.add("category", "Microbiology");

			// invoke service
			builder = webTarget.request(MediaType.TEXT_PLAIN).accept(MediaType.TEXT_PLAIN);
			response = builder.post(Entity.form(formParameters));

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
			client.close();
		}
		return responseString;
	}
}

Output in console

Executing POST request for @FormParameter
Response code: 200
ResponseMessageFromServer: OK
Response String for @FormParam : Book [Name=Diagnostic Microbiology, Author=Patricia Tille, Category=Microbiology] added to the database

Conclusion: When the requirement is to send the data from the form, then this approach would be appropriate

Download project

Jersey-2x-FormParam (8kB)

Happy Coding !!
Happy Learning !!

BenchResources.Net

Java tutorial for beginners

Jersey 2.x web service using @FormParam annotation

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

View Technologies

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

2. Java client

TestBookService.java

Output in console

Download project

Related

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

View Technologies

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

2. Java client

TestBookService.java

Output in console

Download project

Related

Related posts:
