Jersey 2.x web service using @QueryParam annotation

In this article, we will learn and implement @QueryParam annotation in JAX-RS Restful web service. Using QueryParam, you can map/bind URL query parameter into Java method

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

Difference between @PathParam & @QueryParam

In QueryParam you can map the URL query parameter and not their values whereas PathParam directly maps the actual values in the formal arguments of the method invocation

Sample URL for @QueryParam

After question mark (?), there are number of key-value pairs with ampersand sign (&) between them. Now, in @QueryParam these keys are mapped to the method invocation

Annotation Used

  • @QueryParam (
  • @Path (
  • @GET (

Technology Used

  • Java 1.7
  • Eclipse Luna IDE
  • Jersey-2.12
  • Apache Maven 3.2.1
  • Apache Tomcat 8.0.54
  • Glassfish-4.1

Mavenize or download required jars

Add Jersey-2.12 dependencies to pom.xml


		<!-- Jersey core Servlet 2.x implementation -->

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

  • src/test/java –> test related files, mostly JUnit test cases
  • src/main/java –> create java source files under this folder
  • src/main/resources –> all configuration files placed here
  • src/test/resources –> all test related configuration files placed here
  • Maven Dependencies or Referenced Libraries –> includes jars in the classpath
  • WEB-INF under webapp –> stores web.xml & other configuration files related to web application

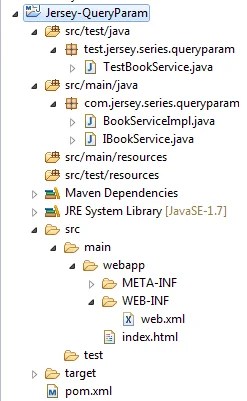

Project Structure (Package Explorer view in Eclipse)


Jars Libraries Used in the Project (Maven Dependencies)


Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

  • Like any JEE web framework register “org.glassfish.jersey.servlet.ServletContainer” with servlet container
  • http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
  • Set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.queryparam
  • <welcome-file-list> files under this tag is the start-up page


<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns=""


	<!-- Jersey Servlet -->
		<!-- Register resources and providers -->


	<!-- welcome file -->



Let’s see coding in action


URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-QueryParam. Initial path for this application is http://localhost:8080/Jersey-QueryParam

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/bookservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Book Service interface

Defines two simple abstract methods

  • First one takes 1-argument
  • Second takes 3-arg arguments

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

package com.jersey.series.queryparam;


public interface IBookService {

	public Response printBookName(String bookName);
	public Response printCompleteBookDetails(String bookName, String author, String category);

Book Service implementation

Implements above interface returning Response object for both methods

Using QueryParam, URL query parameter are mapped into Java method

Defines two simple methods

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

package com.jersey.series.queryparam;


public class BookServiceImpl implements IBookService {

	// http://localhost:8080/Jersey-QueryParam/rest/bookservice/book?name=Neuroscience
	public Response printBookName(@QueryParam("name") String bookName) {

		String bookDetail = "Book name is " + bookName;
		return Response.status(200).entity(bookDetail).build();

	// http://localhost:8080/Jersey-QueryParam/rest/bookservice/bookdetail?name=Medical-Microbiology&author=Brooks&category=Microbiology
	public Response printCompleteBookDetails(
			@QueryParam("name") String bookName,
			@QueryParam("author") String author,
			@QueryParam("category") String category) {

		String bookCompleteDetail = "Book complete detail [Name=" + bookName +  ", Author=" + author + ", Category=" + category + "]";
		return Response.status(200).entity(bookCompleteDetail).build();


Tomcat-8.0.12 Deployment

  • Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
  • Copy(ctrl+c) the war file from the target folder
  • Paste(ctrl+v) it into apache tomcat (webapps folder)
  • Start the tomcat server


Glassfish-4.1 Deployment

  • Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
  • Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
  • There are two ways to deploy war file into Glassfish-4.1
    1. Online
    2. Offline
  • Click here to understand above deployments process in detail

Test the service !!


There are many ways to do testing

  • Access html page from web browser
  • Copy the URL of GET service into web browser
  • Advanced REST client from Google Chrome
  • Rest client in Mozilla Firefox Add On
  • Write your own client for example, Java client using improved CloseableHttpClient from Apache
  • JDK’s in-built classes like HttpURLConnection
  • Using Client, WebTarget from core JAX-RS classes


1. Hit the web browser with GET URL

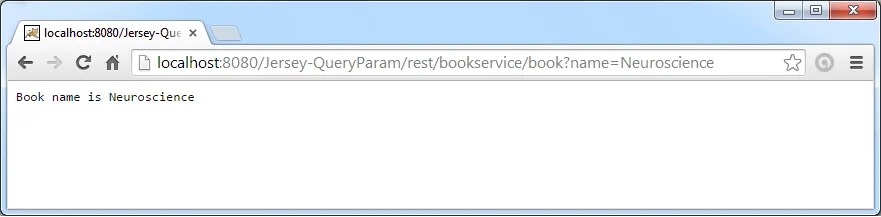

First Method:
Enter url http://localhost:8080/Jersey-QueryParam/rest/bookservice/book?name=Neuroscience

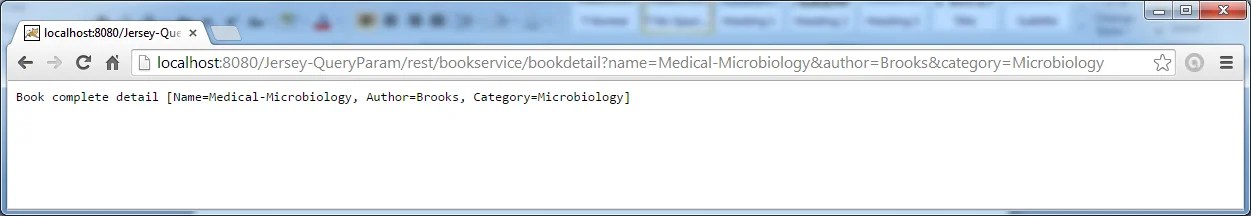

Second Method:
Enter url http://localhost:8080/Jersey-QueryParam/rest/bookservice/bookdetail?name=Medical-Microbiology&author=Brooks&category=Microbiology


2. Using Advanced Rest client from Google Chrome

First Method:
Enter url http://localhost:8080/Jersey-QueryParam/rest/bookservice/book?name=Neuroscience

Second Method:
Enter url http://localhost:8080/Jersey-QueryParam/rest/bookservice/bookdetail?name=Medical-Microbiology&author=Brooks&category=Microbiology


3. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package for invoking Restful web service

Note: Commented lines will help out us to various request header parameters

package test.jersey.series.queryparam;


import org.glassfish.jersey.client.ClientConfig;

public class TestBookService {

	public static void main(String[] args) {

		// setting & invoking first request
		System.out.println("Executing first service with single parameter");
		String httpURL = "http://localhost:8080/Jersey-QueryParam/rest/bookservice/book?name=Neuroscience";
		String responseString = testBookService(httpURL);
		System.out.println("responseString : " + responseString);

		// setting & invoking second request
		System.out.println("\n\nExecuting second service with multiple parameter");
		String httpURL3 = "http://localhost:8080/Jersey-QueryParam/rest/bookservice/bookdetail?name=Medical-Microbiology&author=Brooks&category=Microbiology";
		String responseString3 = testBookService(httpURL3);
		System.out.println("responseString : " + responseString3);

	public static String testBookService(String httpURL) {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Builder builder = null;
		Response response = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			client =  ClientBuilder.newClient(clientConfig);
			//"Content-Type", MediaType.TEXT_PLAIN);
			//"accept", MediaType.TEXT_PLAIN);
			webTarget =;

			// invoke service
			builder = webTarget.request(MediaType.TEXT_PLAIN).accept(MediaType.TEXT_PLAIN);
			response = builder.get();

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		catch(Exception ex) {
			// release resources, if any
		return responseString;

Output in console

Executing first service with single parameter
Response code: 200
ResponseMessageFromServer: OK
responseString : Book name is Neuroscience

Executing second service with multiple parameter
Response code: 200
ResponseMessageFromServer: OK
responseString : Book complete detail [Name=Medical-Microbiology, Author=Brooks, Category=Microbiology]

Conclusion: With key=value pair combination, it increases the readability and maintenance of @GET requests

Download project

Jersey-2x-QueryParam (8kB)

Happy Coding !!
Happy Learning !!
