Jersey 2.x web service + Integrating with Spring Security

In this article, we will protect the Jersey 2.x JAX-RS exposed web services using Spring Security. And only authorized users are allowed to access these protected services

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

Annotation Used

@Path (ws.rs.Path)
@GET (ws.rs.GET)
@POST (ws.rs.POST)
@PUT (ws.rs.PUT)
@DELETE (ws.rs.DELETE)
@PathParam (ws.rs.PathParam)
@Consumes (ws.rs.Consumes)
@Produces (ws.rs.Produces)
MediaType (ws.rs.core.MediaType)

Technology Used

Java 1.7
Eclipse Luna IDE
Jersey-2.12
Jersey-spring3-2.12
Spring framework-4.1.0.RELEASE
Spring-security-3.2.5.RELEASE
MySql-connector-java-5.1.32
Apache Maven 3.2.1
Apache Tomcat 8.0.54
Glassfish-4.1

Mavenize or download required jars

Add Jersey-2.12, Jersey-spring3-2.12, Spring-4.1.0.RELEASE, spring-security-3.2.5.RELEASE & mysql-5.1.32 dependencies to pom.xml

	<properties>
		<jersey.version>2.12</jersey.version>
		<jersey.scope>compile</jersey.scope>
		<spring.version>4.1.0.RELEASE</spring.version>
		<spring.security.version>3.2.5.RELEASE</spring.security.version>
		<mysql.version>5.1.32</mysql.version>
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- Jersey core Servlet 2.x implementation -->
		<dependency>
			<groupId>org.glassfish.jersey.containers</groupId>
			<artifactId>jersey-container-servlet-core</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>

		<!-- Jersey JSON Jackson (2.x) entity providers support module -->
		<dependency>
			<groupId>org.glassfish.jersey.media</groupId>
			<artifactId>jersey-media-json-jackson</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
		</dependency>

		<!-- Jersey extension module providing support for Spring 3 integration -->
		<dependency>
			<groupId>org.glassfish.jersey.ext</groupId>
			<artifactId>jersey-spring3</artifactId>
			<version>${jersey.version}</version>
			<scope>${jersey.scope}</scope>
			<exclusions>
				<exclusion>
					<groupId>org.springframework</groupId>
					<artifactId>spring-core</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.springframework</groupId>
					<artifactId>spring-web</artifactId>
				</exclusion>
				<exclusion>
					<groupId>org.springframework</groupId>
					<artifactId>spring-beans</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<!-- Spring Framework-4.x -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- Spring Security 3.2.5.RELEASE Framework -->
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-core</artifactId>
			<version>${spring.security.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-web</artifactId>
			<version>${spring.security.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.security</groupId>
			<artifactId>spring-security-config</artifactId>
			<version>${spring.security.version}</version>
		</dependency>

		<!-- MySql-Connector -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql.version}</version>
		</dependency>
	</dependencies>

Note: Jackson – high performance parser is included as dependencies for JSON support

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

JAXB – Generating java source files from XSD

Steps to generate java-sources from XML Schema Definition (XSD)

configure JAXB Maven plugin in pom.xml
write well-defined XSD for your service
use maven command “mvn generate-sources” to generate java source files

Configure JAXB Maven plugin

<!-- JAXB plugin to generate-sources from XSD -->
<plugin>
	<groupId>org.codehaus.mojo</groupId>
	<artifactId>jaxb2-maven-plugin</artifactId>
	<version>1.6</version>
	<executions>
		<execution>
			<goals>
				<goal>xjc</goal><!-- xjc/generate -->
			</goals>
			<configuration>
				<outputDirectory>${basedir}/generated/java/source</outputDirectory>
				<schemaDirectory>${basedir}/src/main/resources/com/jersey/series/spring/security/service/entities</schemaDirectory>
				<schemaFiles>*.xsd</schemaFiles>
				<schemaLanguage>XMLSCHEMA</schemaLanguage>
				<extension>true</extension>
				<args>
					<arg>-XtoString</arg>
				</args>
				<plugins>
					<plugin>
						<groupId>org.jvnet.jaxb2_commons</groupId>
						<artifactId>jaxb2-basics</artifactId>
						<version>0.6.4</version>
					</plugin>
				</plugins>
			</configuration>
		</execution>
	</executions>
</plugin>

Book.xsd

Below XSD contains two elements with name “BookType” and “BookListType”

BookType contains four attributes namely bookId, bookName, author, category
BookListType which returns list of BookType

<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
	targetNamespace="http://benchresources.in/cdm/Book" xmlns:tns="http://benchresources.in/cdm/Book"
	elementFormDefault="qualified">

	<!-- book object with four attributes -->
	<xsd:element name="BookType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="bookId" type="xsd:int" />
				<xsd:element name="bookName" type="xsd:string" />
				<xsd:element name="author" type="xsd:string" />
				<xsd:element name="category" type="xsd:string" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>

	<!-- an object to contain lists of books referencing above Book object -->
	<xsd:element name="BookListType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element ref="tns:BookType" minOccurs="0" maxOccurs="unbounded" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>
</xsd:schema>

Run mvn generate-sources

Look at the generated java source files in the generated folder

BookType.java

package in.benchresources.cdm.book;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "bookId",
    "bookName",
    "author",
    "category"
})
@XmlRootElement(name = "BookType")
public class BookType {

    protected int bookId;
    @XmlElement(required = true)
    protected String bookName;
    @XmlElement(required = true)
    protected String author;
    @XmlElement(required = true)
    protected String category;

    public int getBookId() {
        return bookId;
    }
    public void setBookId(int value) {
        this.bookId = value;
    }

    public String getBookName() {
        return bookName;
    }
    public void setBookName(String value) {
        this.bookName = value;
    }

    public String getAuthor() {
        return author;
    }
    public void setAuthor(String value) {
        this.author = value;
    }

    public String getCategory() {
        return category;
    }
    public void setCategory(String value) {
        this.category = value;
    }
}

BookListType.java

package in.benchresources.cdm.book;

import java.util.ArrayList;
import java.util.List;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "bookType"
})
@XmlRootElement(name = "BookListType")
public class BookListType {

    @XmlElement(name = "BookType")
    protected List<BookType> bookType;

    public List<BookType> getBookType() {
        if (bookType == null) {
            bookType = new ArrayList<BookType>();
        }
        return this.bookType;
    }
}

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

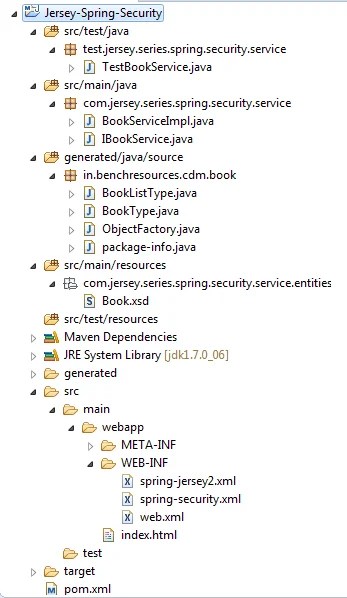

Project Structure (Package Explorer view in Eclipse)

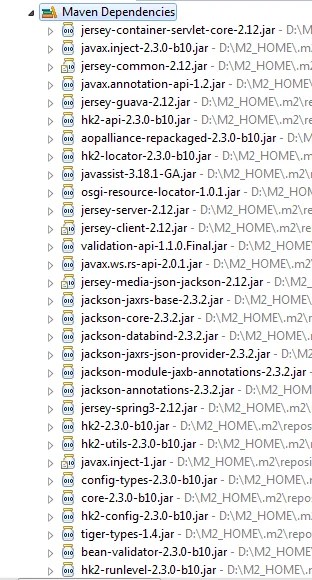

Jars Libraries Used in the Project (Maven Dependencies)

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

Like any JEE web framework register “org.glassfish.jersey.servlet.ServletContainer” with servlet container
register spring listener springframework.web.context.ContextLoaderListener
http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
Set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.spring.security.service”
<context-param> with its attributes describes the location of the “spring-jersey2.xml” and “spring-security.xml” files from where it has to be loaded. We will discuss briefly about these files
<welcome-file-list> files under this tag is the start-up page
Servlet filter called “DelegatingFilterProxy” with url-pattern /* intercepts incoming http requests and enter Spring Security framework for security checks to authenticate users
“spring-security.xml”describes which URL needs to be intercepted along with their roles/credentials
NOTE:don’t change this name “springSecurityFilterChain”

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>Jersey-Spring-Security</display-name>

	<!-- Spring Security -->
	<filter>
		<filter-name>springSecurityFilterChain</filter-name>
		<filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
	</filter>

	<filter-mapping>
		<filter-name>springSecurityFilterChain</filter-name>
		<url-pattern>/*</url-pattern>
		<dispatcher>REQUEST</dispatcher>
		<dispatcher>FORWARD</dispatcher>
		<dispatcher>INCLUDE</dispatcher>
		<dispatcher>ERROR</dispatcher>
	</filter-mapping>

	<!-- Spring Listener -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- Jersey Servlet -->
	<servlet>
		<servlet-name>jersey-servlet</servlet-name>
		<servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
		<!-- Register resources and providers -->
		<init-param>
			<param-name>jersey.config.server.provider.packages</param-name>
			<param-value>com.jersey.series.spring.security.service</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>jersey-servlet</servlet-name>
		<url-pattern>/rest/*</url-pattern>
	</servlet-mapping>

	<!-- loading Spring Context for registering beans with ApplicationContext -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>
			WEB-INF/spring-jersey2.xml,
			WEB-INF/spring-security.xml
		</param-value>
	</context-param>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

</web-app>

Spring Application Context file

This Spring Application Context file describes,

<context:annotation-config /> to activate annotation on the registered beans with application context
<context:component-scan base-package=”” /> tag scans all classes & sub-classes under the value of base-package attribute and register them with the Spring container
bean with id=”dataSource” defines values for driverClassName, url, username and password for MySql database

spring-jersey2.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">

	<!-- to activate annotations in beans already registered in the ApplicationContext -->
	<context:annotation-config />

	<!-- scans packages to find and register beans within the application context -->
	<context:component-scan base-package="com.jersey.series.spring.security" />

	<!-- MySql dataSource configuration -->
	<bean id="dataSource"
		class="org.springframework.jdbc.datasource.DriverManagerDataSource">
		<property name="driverClassName" value="com.mysql.jdbc.Driver" />
		<property name="url" value="jdbc:mysql://localhost:3306/benchresources" />
		<property name="username" value="root" />
		<property name="password" value="" />
	</bean>

</beans>

MySql Database

To move user credentials and their ROLES, you have to create tables and insert records. Let’s do it

Create USERS table

create table users (
    username varchar(50) not null primary key,
    password varchar(60) not null,
    enabled boolean not null
) engine = InnoDb;

Create AUTHORITIES table

create table authorities (
    username varchar(50) not null,
    authority varchar(50) not null,
    foreign key (username) references users (username),
    unique index authorities_idx_1 (username, authority)
) engine = InnoDb;

Let’s insert records in both tables

# INSERT records into USERS table

INSERT INTO `users`(`username`, `password`, `enabled`) VALUES ('Arun',
'$2a$10$BwyjwGRWc4gMk2Y1e2jzie.FVYrfgxV0.aHgdU1VM6E.Rf0ZYoaWa, 1);
INSERT INTO `users`(`username`, `password`, `enabled`) VALUES ('Jeremy',
'$2a$10$EHmzwTcEFS1IUZ.hhsMw.uZvG2uwH7fOS1nh/fcIiAvmXg3LwdVP.', 1);
INSERT INTO `users`(`username`, `password`, `enabled`) VALUES ('Jing',
'$2a$10$twiIh66bjFBWBYZPWOrc1uS/KRCdT61Z5wFdpJGdeHwY2HeCZ.J.a, 1);

# INSERT records into AUTHORITIES table

INSERT INTO authorities (username, authority) VALUES ('Arun', 'ROLE_ADMIN');
INSERT INTO authorities (username, authority) VALUES ('Jeremy', 'ROLE_USER');
INSERT INTO authorities (username, authority) VALUES ('Jing', 'ROLE_USER');

How to get hashed or encoded password using BCryptPasswordEncoder

PasswordHashing.java

package test.jersey.series.spring.security.hashing;

import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;

public class PasswordHashing {

	// http://docs.spring.io/spring-security/site/docs/3.2.4.RELEASE/reference/htmlsingle/#ns-getting-started
	public static void main(String[] args) {

		String[] originalPassword = {"arun123", "jeremy123", "jing123"};
		PasswordEncoder encoder = new BCryptPasswordEncoder();
		String hashedPassword = "";

		System.out.println("ORIGINAL \t HASHED");
		System.out.println("=========\t=======");
		for(String password : originalPassword){
			hashedPassword = encoder.encode(password);
			System.out.println(password + "\t\t" + hashedPassword);
		}
	}
}

Result in console

ORIGINAL 	 HASHED
=========	=======
arun123	        $2a$10$BwyjwGRWc4gMk2Y1e2jzie.FVYrfgxV0.aHgdU1VM6E.Rf0ZYoaWa
jeremy123	$2a$10$EHmzwTcEFS1IUZ.hhsMw.uZvG2uwH7fOS1nh/fcIiAvmXg3LwdVP.
jing123	        $2a$10$twiIh66bjFBWBYZPWOrc1uS/KRCdT61Z5wFdpJGdeHwY2HeCZ.J.a

Spring Security Configuration

This Spring Security configuration file describes the security URL to be intercepted and login details for that particular role

First element <security:http /> with pattern describes which are all incoming http requests needs to be intercepted
Second element with <security:authentication-manager /> defines the credentials (username/password) for every role. For example, ROLE_ADMIN, ROLE_USER, etc
<security:password-encoder ref=“bcryptPasswordEncoder” /> refers hashing algorithm used for this application, which is BCryptPasswordEncoder(springframework.security.crypto.bcrypt.BCryptPasswordEncoder)
bcryptPasswordEncoder bean defines encoding algorithm with two constructor-arg viz. name & strength. Default strength value is 10
<security:jdbc-user-service /> defines two queries to authenticate user credentials along with their ROLES, interacting with dataSource configured in the spring-jersey2.xml which is MySql database in our example

spring-security.xml

<beans:beans xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:security="http://www.springframework.org/schema/security"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
	http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-3.2.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.2.xsd">

	<security:http auto-config="true">
		<security:intercept-url pattern="/rest/**"
			access="ROLE_USER" />
	</security:http>

	<security:authentication-manager>
		<security:authentication-provider>
			<security:password-encoder ref="bcryptPasswordEncoder" />
			<security:jdbc-user-service
				data-source-ref="dataSource"
				users-by-username-query="select username, password, enabled from users where username=?"
				authorities-by-username-query="select username, authority from authorities where username=?  " />
		</security:authentication-provider>
	</security:authentication-manager>

	<beans:bean id="bcryptPasswordEncoder"
		class="org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder">
		<beans:constructor-arg name="strength" value="10" />
	</beans:bean>

</beans:beans>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-Spring-Security. Initial path for this application is http://localhost:8080/Jersey-Spring-Security

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/bookservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Book Service interface

Defines basic CRUD operations for Book Service

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

IBookService.java

package com.jersey.series.spring.security.service;

import in.benchresources.cdm.book.BookListType;
import in.benchresources.cdm.book.BookType;

public interface IBookService {

	// Basic CRUD operations for Book Service

	public String createOrSaveBookInfo(BookType bookType);
	public BookType getBookInfo(int bookId);
	public String updateBookInfo(BookType bookType);
	public String deleteBookInfo(int bookId);
	public BookListType getAllBookInfo();
}

Book Service implementation

Implements above interface

Defines simple CURD operations

@POST – create/inserts a new resource (adds new book information)
@GET – read/selects internal resource representation based on the bookId
@PUT – update/modifies an internal resource representation (modify book)
@DELETE – delete/removes a resource (delete book)
@GET – retrieves all books (get all books information)

Let’s discuss @Produces, @Consumes and MediaType

@Consumes
Defines which MIME type is consumed by this method. For this example, exposed methods supports both XML & JSON formats i.e.; methods are annotated with @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: When Content-Type is not specified in the header, then by default it expects request body in “application/x-www-form-urlencoded”. So, Content-Type needs to be set/sent in the header

@Produces
Defines which MIME type it will produce. For this example, exposed methods produce response in both XML & JSON formats i.e.; methods are annotated with @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: By default, when invoked it returns the response in XML as it is the first string in the array. So, to get the response in the JSON format then set accept=”application/json” in the header

Most widely used Media Types are

APPLICATION_XML,
APPLICATION_JSON,
TEXT_PLAIN,
TEXT_XML,
APPLICATION_FORM_URLENCODED,
etc

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

BookServiceImpl.java

package com.jersey.series.spring.security.service;

import in.benchresources.cdm.book.BookListType;
import in.benchresources.cdm.book.BookType;

import javax.ws.rs.Consumes;
import javax.ws.rs.DELETE;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.PUT;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;

@Path("/bookservice")
public class BookServiceImpl implements IBookService {

	// Basic CRUD operations for Book Service

	// http://localhost:8080/Jersey-Spring-Security/rest/bookservice/addbook
	@POST
	@Path("addbook")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces(MediaType.APPLICATION_FORM_URLENCODED)
	public String createOrSaveBookInfo(BookType bookType) {

		// get book information from formal arguments and inserts into database & return bookId (primary_key)
		return "New Book information saved successfully with Book_ID " + bookType.getBookId();
	}

	// http://localhost:8080/Jersey-Spring-Security/rest/bookservice/getbook/65235
	@GET
	@Path("getbook/{id}")
	@Consumes(MediaType.APPLICATION_FORM_URLENCODED)
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public BookType getBookInfo(@PathParam("id") int bookId) {

		// retrieve book information based on the id supplied in the formal argument
		BookType bookType = new BookType();
		bookType.setBookId(bookId);
		bookType.setBookName("Industrial Microbiology and Biotechnology");
		bookType.setAuthor("Arnold L.Demain");
		bookType.setCategory("Microbiology");
		return bookType;
	}

	// http://localhost:8080/Jersey-Spring-Security/rest/bookservice/updatebook
	@PUT
	@Path("updatebook")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces(MediaType.APPLICATION_FORM_URLENCODED)
	public String updateBookInfo(BookType bookType) {

		// update book info & return SUCCESS message
		return "Book information updated successfully";
	}

	// http://localhost:8080/Jersey-Spring-Security/rest/bookservice/deletebook/10001
	@DELETE
	@Path("deletebook/{id}")
	@Consumes(MediaType.APPLICATION_FORM_URLENCODED)
	@Produces(MediaType.APPLICATION_FORM_URLENCODED)
	public String deleteBookInfo(@PathParam("id") int bookId) {

		// delete book info & return SUCCESS message
		return "Book information with Book_ID " + bookId +  " deleted successfully";
	}

	// http://localhost:8080/Jersey-Spring-Security/rest/bookservice/getallbook
	@GET
	@Path("getallbook")
	@Consumes(MediaType.APPLICATION_FORM_URLENCODED)
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public BookListType getAllBookInfo() {

		// create a object of type BookListType which takes book objects in its list
		BookListType bookListType = new BookListType();

		BookType bookOne = new BookType();
		bookOne.setBookId(65912);
		bookOne.setBookName("Essential Microbiology");
		bookOne.setAuthor("Stuart Hogg");
		bookOne.setCategory("Microbiology");
		bookListType.getBookType().add(bookOne); // add to bookListType

		BookType bookTwo = new BookType();
		bookTwo.setBookId(65988);
		bookTwo.setBookName("Environmental Microbiology");
		bookTwo.setAuthor("Charles P. Gerba");
		bookTwo.setCategory("Microbiology");
		bookListType.getBookType().add(bookTwo); // add to bookListType

		return bookListType;
	}
}

Tomcat-8.0.12 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Copy(ctrl+c) the war file from the target folder
Paste(ctrl+v) it into apache tomcat (webapps folder)
Start the tomcat server

Glassfish-4.1 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
There are two ways to deploy war file into Glassfish-4.1
1. Online
2. Offline
Click here to understand above deployments process in detail

Test the service !!

Testing

There are many ways to do testing

Access html page from web browser
Copy the URL of GET service into web browser
Advanced REST client from Google Chrome
Rest client in Mozilla Firefox Add On
Write your own client for example, Java client using improved CloseableHttpClient from Apache
JDK’s in-built classes like HttpURLConnection
Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client

1. Using RestClient from Mozilla Firefox Add-On

Every service tested setting up header parameters “accept” & “Content-Type” in the request. First for JSON format and then XML format

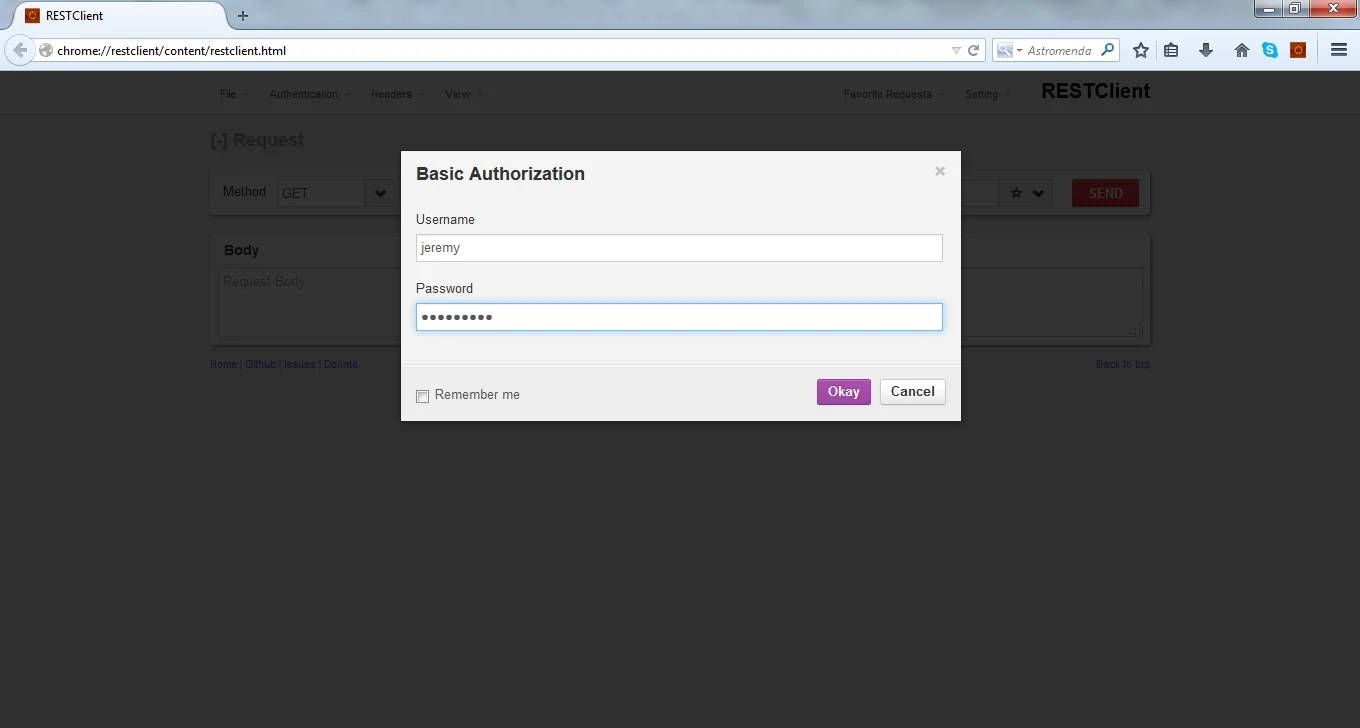

Before proceeding with testing of every service, you must provide correct credentials as spring-security will intercept request http url with pattern “/rest/**”. See spring-security.xml file for details

getAllBook() service
Output

{
  "BookType": [
    {
      "bookId": 65912,
      "bookName": "Essential Microbiology",
      "author": "Stuart Hogg",
      "category": "Microbiology"
    },
    {
      "bookId": 65988,
      "bookName": "Environmental Microbiology",
      "author": "Charles P. Gerba",
      "category": "Microbiology"
    }
  ]
}

Similarly, we can test other exposed services using Mozilla Rest client

2. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package javax.ws.rs.client for invoking Restful web service

Note: Commented lines will help out us to try (set) various http request header parameters

TestBookService.java

package test.jersey.series.spring.security.service;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Entity;
import javax.ws.rs.client.Invocation;
import javax.ws.rs.client.Invocation.Builder;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;
import org.glassfish.jersey.internal.util.Base64;

public class TestBookService {

	public static void main(String[] args) {

		// encoding with Base64 and passing as authorization
		String userName = "jeremy";
		String password = "jeremy123";
		String authString = userName + ":" + password;
		byte[] authEncBytes = Base64.encode(authString.getBytes());
		String authorization = new String(authEncBytes);

		// setting & invoking first service getBook/10001
		System.out.println("Invoking and executing getBook service for book id 10001");
		String httpGetURL = "http://localhost:8080/Jersey-Spring-Security/rest/bookservice/getbook/10001";
		String responseStringGet = testBookServiceForGetRequest(httpGetURL, authorization);
		System.out.println("GET >> Response String : " + responseStringGet);

		// setting & invoking second service addBook with XML request
		System.out.println("\n\nInvoking and executing addBook service with request XML");
		String httpPostURL = "http://localhost:8080/Jersey-Spring-Security/rest/bookservice/addbook";
		String requestString = "{"
				+ 					" \"bookId\": 10055, "
				+ 					" \"bookName\": \"Clinical Veterinary Microbiology\","
				+ 					" \"author\": \"Patrick Quinn\","
				+					" \"category\": \"Microbiology\""
				+				"}";
		String responseStringPost = testBookServiceForPostRequest(httpPostURL, requestString, authorization);
		System.out.println("POST >> Response String : " + responseStringPost);
	}

	/**
	 *
	 * @param httpURL
	 * @return
	 */
	public static String testBookServiceForGetRequest(String httpURL, String authorization){

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Invocation.Builder invocationBuilder = null;
		Response response = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			client =  ClientBuilder.newClient(clientConfig);
			//			client.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			//			client.property("accept", MediaType.APPLICATION_XML);
			webTarget = client.target(httpURL);

			// invoke service
			invocationBuilder = webTarget.request(MediaType.APPLICATION_FORM_URLENCODED).accept(MediaType.APPLICATION_XML);
			invocationBuilder.header("Authorization", "Basic " + authorization);
			response = invocationBuilder.get();

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
			client.close();
		}
		return responseString;
	}

	/**
	 *
	 * @param httpURL
	 * @param requestString
	 * @return
	 */
	public static String testBookServiceForPostRequest(String httpURL, String requestString, String authorization) {

		// local variables
		ClientConfig clientConfig = null;
		Client client = null;
		WebTarget webTarget = null;
		Builder builder = null;
		Response response = null;
		int responseCode;
		String responseMessageFromServer = null;
		String responseString = null;

		try{
			// invoke service after setting necessary parameters
			clientConfig = new ClientConfig();
			client =  ClientBuilder.newClient(clientConfig);
			//			client.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			//			client.property("accept", MediaType.APPLICATION_JSON);
			webTarget = client.target(httpURL);

			// invoke service
			builder = webTarget
					.request(MediaType.APPLICATION_FORM_URLENCODED) 							// set Content-Type
					.header("Authorization", "Basic " + authorization) 							// authorization using BCrpyt
					.accept(MediaType.APPLICATION_JSON);										// set accept
			response = builder.post(Entity.entity(requestString, MediaType.APPLICATION_JSON));

			// get response code
			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			// get response message
			responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
			System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

			// get response string
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
			client.close();
		}
		return responseString;
	}
}

Output in console

Invoking and executing getBook service for book id 10001
Response code: 200
ResponseMessageFromServer: OK
GET >> Response String :
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<BookType xmlns="http://benchresources.in/cdm/Book">
	<bookId>10001</bookId>
	<bookName>Industrial Microbiology and Biotechnology</bookName>
	<author>Arnold L.Demain</author>
	<category>Microbiology</category>
</BookType>


Invoking and executing addBook service with request XML
Response code: 200
ResponseMessageFromServer: OK
POST >> Response String : New Book information saved successfully with Book_ID 10055

Conclusion: With Spring-Security framework, we can protect the exposed web services and only authenticated & authorized users can access the services with correct credentials. Also, with hashing/encoding it’s a big advantage to protect the password

Download project

Jersey-2x-Spring-Security (15kB)

Happy Coding !!
Happy Learning !!
