RestEasy: JAX-RS web service + Integrating with Spring MVC web framework

In this article, we will implement an example on RestEasy web service can be integrated with Spring MVC web framework

JBoss RestEasy is a JAX-RS implementation for developing Restful web service in java. Once developed, it isn’t restricted to deploy only in JBoss Application Server but you can deploy in any other server like Apache Tomcat, Glassfish, Oracle Weblogic, etc

RestEasy official documentation for Spring+RestEasy integration see here

An article on dzone site by Solomon Duskis explains Spring MVC + RestEasy Integration in great detail see here

Annotation Used

@Path (ws.rs.Path)
@GET (ws.rs.GET)
@POST (ws.rs.POST)
@PUT (ws.rs.PUT)
@DELETE (ws.rs.DELETE)
@PathParam (ws.rs.PathParam)
@Consumes (ws.rs.Consumes)
@Produces (ws.rs.Produces)
@Controller(org.springframework.stereotype.Controller)
@Repository (org.springframework.stereotype.Repository)
MediaType (ws.rs.core.MediaType)

Technology Used

Java 1.7
Eclipse Luna IDE
RestEasy-3.0.8.Final
Spring-webmvc-3.2.11.RELEASE
Apache Maven 3.2.1
Apache Tomcat 7.0.54
JBoss Application Server 7.1.1.Final

Mavenize or download required jars

Add RestEasy-3.0.8.Final & Spring-3.2.11-Release dependencies to pom.xml

	<properties>
		<resteasy.version>3.0.8.Final</resteasy.version>
		<resteasy.scope>compile</resteasy.scope> <!-- compile(Tomcat) / provided(JBoss) -->
		<spring.version>3.2.11.RELEASE</spring.version>
		<servlet.version>3.1.0</servlet.version>
		<jstl.version>1.2</jstl.version>
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- RESTEasy JAX RS Implementation -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxrs</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Servlet Container Initializer -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-servlet-initializer</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy JAXB Provider -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxb-provider</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Jackson Provider -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jackson-provider</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- RESTEasy JAX RS Client -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-client</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Spring Integration -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-spring</artifactId>
			<version>${resteasy.version}</version>
		</dependency>

		<!-- Spring Framework-3.2.x -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>javax.servlet-api</artifactId>
			<version>${servlet.version}</version>
		</dependency>

		<!-- JSTL for JSP pages -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and download directly from Spring site include them in the classpath

JAXB – Generating java source files from XSD

Steps to generate java-sources from XML Schema Definition (XSD)

configure JAXB Maven plugin in pom.xml
write well-defined XSD for your service
use maven command “mvn generate-sources” to generate java source files

Configure JAXB Maven plugin

<!-- JAXB plugin to generate-sources from XSD -->
<plugin>
	<groupId>org.codehaus.mojo</groupId>
	<artifactId>jaxb2-maven-plugin</artifactId>
	<version>1.6</version>
	<executions>
		<execution>
			<goals>
				<goal>xjc</goal><!-- xjc/generate -->
			</goals>
			<configuration>
				<outputDirectory>${basedir}/generated/java/source</outputDirectory>
				<schemaDirectory>${basedir}/src/main/resources/com/resteasy/series/spring/mvc/integration/service/entities
				</schemaDirectory>
				<schemaFiles>*.xsd</schemaFiles>
				<schemaLanguage>XMLSCHEMA</schemaLanguage>
				<extension>true</extension>
				<args>
					<arg>-XtoString</arg>
				</args>
				<plugins>
					<plugin>
						<groupId>org.jvnet.jaxb2_commons</groupId>
						<artifactId>jaxb2-basics</artifactId>
						<version>0.6.4</version>
					</plugin>
				</plugins>
			</configuration>
		</execution>
	</executions>
</plugin>

Customer.xsd

Below XSD contains two elements with name “CustomerType” and “CustomerListType”

CustomerType contains three attributes namely customerId, name, age
CustomerListType which returns list of CustomerType

<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
	targetNamespace="http://benchresources.in/cdm/Customer" xmlns:tns="http://benchresources.in/cdm/Customer"
	elementFormDefault="qualified">

	<!-- player object with three attributes -->
	<xsd:element name="CustomerType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element name="customerId" type="xsd:int" />
				<xsd:element name="name" type="xsd:string" />
				<xsd:element name="age" type="xsd:int" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>

	<!-- an object to contain lists of players referencing above player object -->
	<xsd:element name="CustomerListType">
		<xsd:complexType>
			<xsd:sequence>
				<xsd:element ref="tns:CustomerType" minOccurs="0"
					maxOccurs="unbounded" />
			</xsd:sequence>
		</xsd:complexType>
	</xsd:element>

</xsd:schema>

Run mvn generate-sources

Look at the generated java source files in the generated folder

CustomerType.java

package in.benchresources.cdm.customer;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "customerId",
    "name",
    "age"
})
@XmlRootElement(name = "CustomerType")
public class CustomerType {

    protected int customerId;
    @XmlElement(required = true)
    protected String name;
    protected int age;

    public int getCustomerId() {
        return customerId;
    }

    public void setCustomerId(int value) {
        this.customerId = value;
    }

    public String getName() {
        return name;
    }

    public void setName(String value) {
        this.name = value;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int value) {
        this.age = value;
    }
}

CustomerListType.java

package in.benchresources.cdm.customer;

import java.util.ArrayList;
import java.util.List;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "customerType"
})
@XmlRootElement(name = "CustomerListType")
public class CustomerListType {

    @XmlElement(name = "CustomerType")
    protected List<CustomerType> customerType;

    public List<CustomerType> getCustomerType() {
        if (customerType == null) {
            customerType = new ArrayList<CustomerType>();
        }
        return this.customerType;
    }
}

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

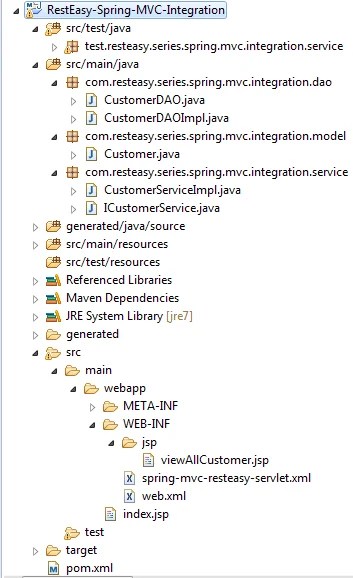

Project Structure (Package Explorer view in Eclipse)

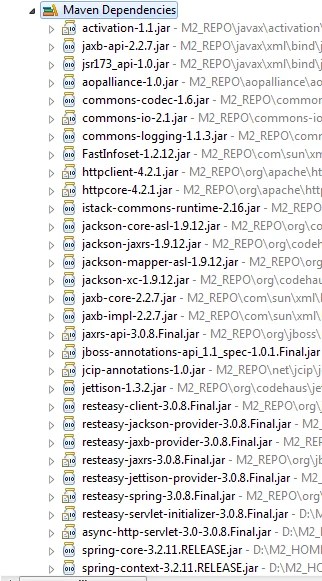

Jars Libraries Used in the Project (Maven Dependencies)

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for RestEasy JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

any http requests with pattern “/resteasy/*” will be intercepted by the configured servlet called “DispatcherServlet” (org.springframework.web.servlet.DispatcherServlet)
<servlet-name> name mentioned in the web.xml is “spring-mvc-resteasy”, which on loading/exploading the war into application server(Tomcat server for our example) looks for the servlet filename called “spring-mvc-resteasy-servlet.xml”
<context-param> with its attributes describes the location of the “spring-mvc-resteasy-servlet.xml” file from where it has to be loaded. We will discuss briefly about this file
<welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>RestEasy-Spring-MVC-Integration</display-name>

	<!-- Spring MVC Dispatcher Servlet -->
	<servlet>
		<servlet-name>spring-mvc-resteasy</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>spring-mvc-resteasy</servlet-name>
		<url-pattern>/resteasy/*</url-pattern>
	</servlet-mapping>

	<!-- loading Spring Context for registering beans with ApplicationContext -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>WEB-INF/spring-mvc-resteasy-servlet.xml</param-value>
	</context-param>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.jsp</welcome-file>
	</welcome-file-list>

</web-app>

Spring Application Context file

This Spring Application Context file describes,

import “springmvc-resteasy.xml” configuration file which specifies default RestEasy + Spring MVC Integration beans
<context:annotation-config /> to activate annotation on the registered beans with application context
<mvc:annotation-driven /> to explicit support for annotation-driven MVC controllers
<context:component-scan base-package=”” /> tag scans all classes & sub-classes under the value of base-package attribute and register them with the Spring container (i.e.; to scan for Spring MVC annotations)
Basically these classes are annotated with @Controller on top of the class
other bean element, basically defines the logic for view resolver i.e.; viewName returned by the Controller which will be sandwiched between the prefix (WEB-INF/jsp) & suffix (.jsp)
Now, there should be a file under the directory as defined i.e.; (WEB-INF/jsp/<viewName>.jsp
Otherwise, not found exception thrown

spring-mvc-resteasy-servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:tx="http://www.springframework.org/schema/tx" xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd
	http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
	http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

	<!-- Import basic SpringMVC Resteasy integration -->
	<import resource="classpath:springmvc-resteasy.xml" />

	<!-- to activate annotations in beans already registered with ApplicationContext -->
	<context:annotation-config />

	<!-- to activate MVC annotation -->
	<mvc:annotation-driven />

	<!-- scans packages to find and register beans within the application context -->
	<context:component-scan base-package="com.resteasy.series.spring.mvc.integration" />

	<!-- view resolver -->
	<bean id="viewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="viewClass"
			value="org.springframework.web.servlet.view.JstlView" />
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>

</beans>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 7.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; RestEasy-Spring-Hibernate. Initial path for this application is http://localhost:8080/RestEasy-Spring-MVC-Integration

We have configured “/resteasy/*” as url-pattern for the “javax.ws.rs.core.Application” servlet in web.xml and at interface-level (or say class-level) path configured is “/resteasy/customerservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Model Class

Model class Customer with three primitive attributes and their getter/setter

Customer.java

package com.resteasy.series.spring.mvc.integration.model;

public class Customer {

	// member variables
	private int customerId;
	private String name;
	private int age;

	// getters & setters
	public int getCustomerId() {
		return customerId;
	}
	public void setCustomerId(int customerId) {
		this.customerId = customerId;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public int getAge() {
		return age;
	}
	public void setAge(int age) {
		this.age = age;
	}
}

Customer Service interface

Defines simple CURD operations

@POST – create/inserts a new resource (new customer)
@GET – read/selects internal resource representation based on the customerId
@GET – retrieves all players (get all customers)
@GET – returns ModelAndView objects with viewName and objects to be rendered on the front end JSP page

Let’s discuss @Produces, @Consumes and MediaType

@Consumes
Defines which MIME type is consumed by this method. For this example, exposed methods supports both XML & JSON formats i.e.; methods are annotated with @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: When Content-Type is not specified in the header, then by default it expects request body in “application/x-www-form-urlencoded”. So, Content-Type needs to be set/sent in the header

@Produces
Defines which MIME type it will produce. For this example, exposed methods produce response in both XML & JSON formats i.e.; methods are annotated with @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON})

Note: By default, when invoked it returns the response in XML as it is the first string in the array. So, to get the response in the JSON format then set accept=”application/json” in the header

Most widely used Media Types are

MediaType.APPLICATION_XML,
MediaType.APPLICATION_JSON,
MediaType.TEXT_PLAIN,
MediaType.TEXT_XML,
MediaType.APPLICATION_FORM_URLENCODED,
etc

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

ICustomerService.java

package com.resteasy.series.spring.mvc.integration.service;

import in.benchresources.cdm.customer.CustomerListType;
import in.benchresources.cdm.customer.CustomerType;

import javax.ws.rs.Consumes;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;

import org.springframework.web.servlet.ModelAndView;

@Path("/resteasy/customerservice")
public interface ICustomerService {

	// Basic CRUD operations for Customer Service

	// http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/addcustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-Spring-MVC-Integration/resteasy/customerservice/addcustomer  - JBoss AS7
	@POST
	@Path("addcustomer")
	@Consumes({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	@Produces({MediaType.APPLICATION_FORM_URLENCODED})
	public String createOrSaveNewCustomerInfo(CustomerType customerType);

	// http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/getcustomer/10001  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-Spring-MVC-Integration/resteasy/customerservice/getcustomer/10001  - JBoss AS7
	@GET
	@Path("getcustomer/{id}")
	@Consumes({MediaType.APPLICATION_FORM_URLENCODED})
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public CustomerType getCustomerInfo(@PathParam("id") int customerId);

	// http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/getallcustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-Spring-MVC-Integration/resteasy/customerservice/getallcustomer  - JBoss AS7
	@GET
	@Path("getallcustomer")
	@Consumes({MediaType.APPLICATION_FORM_URLENCODED})
	@Produces({MediaType.APPLICATION_JSON, MediaType.APPLICATION_XML})
	public CustomerListType getAllCustomerInfo();

	// REST allows a client to select which format it prefers to receive the data in through a process called Content Negotiation.
	// Content Negotiation can happen through HTTP headers, URI or query parameters.

	// http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/viewallcustomer  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-Spring-MVC-Integration/resteasy/customerservice/viewallcustomer  - JBoss AS7
	@GET
	@Path("viewallcustomer")
	@Produces(MediaType.TEXT_HTML)
	public ModelAndView viewAllCustomer();
}

Customer Service implementation

Implements above interface. JAX-RS classes should be annotated with Spring annotation like @Component or @Service

CustomerServiceImpl.java

package com.resteasy.series.spring.mvc.integration.service;

import in.benchresources.cdm.customer.CustomerListType;
import in.benchresources.cdm.customer.CustomerType;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.servlet.ModelAndView;

import com.resteasy.series.spring.mvc.integration.dao.CustomerDAO;
import com.resteasy.series.spring.mvc.integration.model.Customer;

@Controller
public class CustomerServiceImpl implements ICustomerService {

	@Autowired
	private CustomerDAO customerDAO;

	@Override
	public String createOrSaveNewCustomerInfo(CustomerType customerType) {

		Customer newCustomer = new Customer();
		newCustomer.setCustomerId(customerType.getCustomerId());
		newCustomer.setName(customerType.getName());
		newCustomer.setAge(customerType.getAge());
		return customerDAO.insertNewCustomer(newCustomer);
	}

	@Override
	public CustomerType getCustomerInfo(int customerId) {

		Customer getCustomer = customerDAO.getCustomer(customerId);

		CustomerType customerType = new CustomerType();
		customerType.setCustomerId(getCustomer.getCustomerId());
		customerType.setName(getCustomer.getName());
		customerType.setAge(getCustomer.getAge());
		return customerType;
	}

	@Override
	public CustomerListType getAllCustomerInfo() {

		List<Customer> lstCustomer = customerDAO.getAllCustomer();
		CustomerListType customerListType = new CustomerListType();

		for(Customer customer : lstCustomer){
			CustomerType customerType = new CustomerType();
			customerType.setCustomerId(customer.getCustomerId());
			customerType.setName(customer.getName());
			customerType.setAge(customer.getAge());
			customerListType.getCustomerType().add(customerType);
		}
		return customerListType;
	}

	@Override
	public ModelAndView viewAllCustomer() {

		CustomerListType customerListType = getAllCustomerInfo();
		return new ModelAndView("viewAllCustomer", "customerListType", customerListType);
	}
}

DAO layer

This DAO layer takes care of the database interaction. In this example, actually there is no database just returning dummy data for demo purpose. In the next article, we will enhance or improve this article by integrating with Hibernate ORM framework

CustomerDAO.java

package com.resteasy.series.spring.mvc.integration.dao;

import java.util.List;

import com.resteasy.series.spring.mvc.integration.model.Customer;

public interface CustomerDAO {

	public String insertNewCustomer(Customer customer);
	public Customer getCustomer(int customerId);
	public List<Customer> getAllCustomer();
}

CustomerDAOImpl.java

package com.resteasy.series.spring.mvc.integration.dao;

import java.util.ArrayList;
import java.util.List;

import org.springframework.stereotype.Repository;

import com.resteasy.series.spring.mvc.integration.model.Customer;

@Repository("customerDAO")
public class CustomerDAOImpl implements CustomerDAO	 {

	@Override
	public String insertNewCustomer(Customer customer) {
		return "Customer information saved successfully with Customer_ID " + customer.getCustomerId();
	}

	@Override
	public Customer getCustomer(int customerId) {

		Customer customer = new Customer();
		customer.setCustomerId(customerId);
		customer.setName("Picolo");
		customer.setAge(65);
		return customer;
	}

	@Override
	public List<Customer> getAllCustomer() {

		List<Customer> lstCustomer = new ArrayList<Customer>();

		Customer customerOne = new Customer();
		customerOne.setCustomerId(10023);
		customerOne.setName("Gogo");
		customerOne.setAge(20);
		lstCustomer.add(customerOne);

		Customer customerTwo = new Customer();
		customerTwo.setCustomerId(10024);
		customerTwo.setName("Gohan");
		customerTwo.setAge(38);
		lstCustomer.add(customerTwo);

		return lstCustomer;
	}
}

View Technologies

Start up page which has anchor link to “resteasy/customerservice/viewallcustomer” with value “View All Customers” à redirects to Controller method viewAllCustomer() which returns ModelAndView with viewName “viewAllCustomers”

index.html (\src\main\webapp\index.html)

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>RestEasy-Spring-MVC-Integration</title>
</head>
<body style="text-align: center">
	<br />
	<br />
	<b>Welcome to the world of RestEasy - A JAX-RS Restful web service</b>
	<br />
	<br />
	<a href="resteasy/customerservice/viewallcustomer">View All Customers</a>
</body>
</html>

On clicking link “View All Customers” on the index page invokes controller method, to return ModelAndView object with viewName which is “viewAllCustomer” i.e.; below JSP page along with customerListType objects containing all customer details. This objects is rendered and data is displayed in this JSP page in table format

viewAllCustomers.jsp (\src\main\webapp\WEB-INF\jsp\viewAllCustomers.jsp)

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<%@taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>RestEasy-Spring-MVC-Integration</title>
</head>
<body style="text-align: center">
	<h4>View All Customers</h4>
	<table align="center" border="1" cellpadding="10">
		<tr>
			<th>Customer ID</th>
			<th>Name</th>
			<th>Age</th>
		</tr>
		<c:forEach items="${customerListType.customerType}" var="customerType"
			varStatus="status">
			<tr>
				<td>${customerType.customerId}</td>
				<td>${customerType.name}</td>
				<td>${customerType.age}</td>
			</tr>
		</c:forEach>
	</table>
	<br />
</body>
</html>

Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Copy the war file from the target folder
Paste it into apache tomcat (webapps folder)
Start the tomcat server

Test the service !!

Testing

There are many ways to do testing

Copy the URL of GET service into web browser
Advanced REST client from Google Chrome
Rest client in Mozilla Firefox Add On
Write your own client for example, Java client using improved CloseableHttpClient from Apache
JDK’s in-built classes like HttpURLConnection
Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client
Using ResteasyClient, ResteasyWebTarget and Response classes from JBoss package org.jboss.resteasy.client
Using ClientRequest and ClientResponse classes from JBoss package org.jboss.resteasy.client

1. Spring MVC + RestEasy

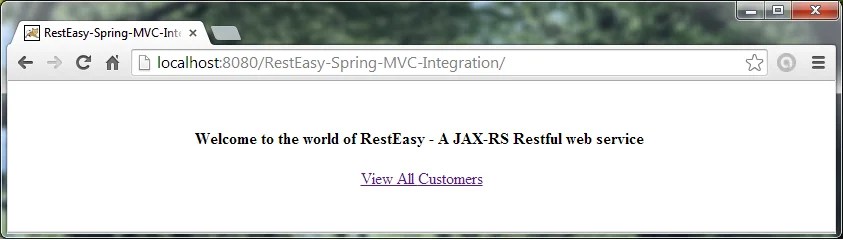

Enter base URL into web browser http://localhost:8080/RestEasy-Spring-MVC-Integration –> which has a link to view all customers

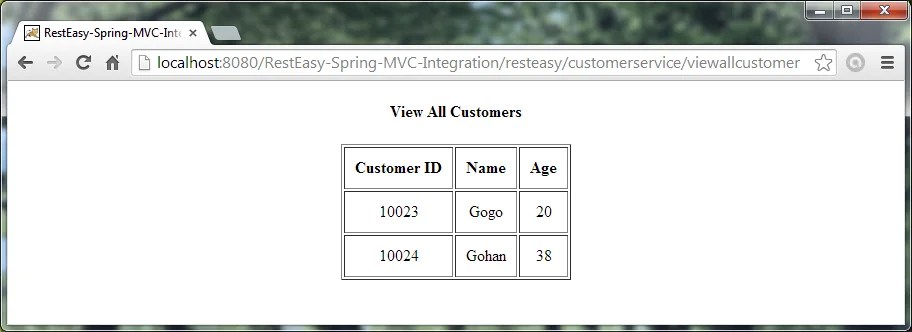

Click the link –> hits the service viewAllCustomer() and returns ModelAndView objects and thus displays below page

2. Java client (RestEasy)

There are two test clients which comes from JBoss RestEasy package org.jboss.resteasy.client and org.jboss.resteasy.client.jaxrs

ClientRequest and ClientResponse for invoking getCustomerInfo service
ResteasyClient, ResteasyClientBuilder and ResteasyWebTarget for invoking addCustomerInfo service

Self-explanatory !!

Note: above clients can be interchanged. No restriction, only needs to set correct http request parameters or header values

TestCustomerService.java

package test.resteasy.series.spring.mvc.integration.service;

import javax.ws.rs.HttpMethod;
import javax.ws.rs.client.Entity;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.jboss.resteasy.client.ClientRequest;
import org.jboss.resteasy.client.ClientResponse;
import org.jboss.resteasy.client.jaxrs.ResteasyClient;
import org.jboss.resteasy.client.jaxrs.ResteasyClientBuilder;
import org.jboss.resteasy.client.jaxrs.ResteasyWebTarget;

public class TestCustomerService {

	public static void main(String[] args) throws Exception {

		// setting & invoking first service getCustomer/45001
		System.out.println("Invoking and executing getCustomer service for customer id 45001");
		String httpGetURL = "http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/getcustomer/45001";
		String responseStringGet = testCustomerServiceForGetRequest(httpGetURL);
		System.out.println("GET >> Response String : " + responseStringGet);

		// setting & invoking second service addCustomer with XML request
		System.out.println("\n\nInvoking and executing addCustomer service with request");
		String httpPostURL = "http://localhost:8080/RestEasy-Spring-MVC-Integration/resteasy/customerservice/addcustomer";
		String requestStringInXml = "<?xml version=\"1.0\" encoding=\"UTF-8\" standalone=\"yes\"?>"
				+ 					"<CustomerType xmlns=\"http://benchresources.in/cdm/Customer\">"
				+ 						"<customerId>10019</customerId>"
				+ 						"<name>Spider Man</name>"
				+ 						"<age>21</age>"
				+ 					"</CustomerType>";
		String requestStringInJson = "{"
				+ 						" \"customerId\": 45011, "
				+ 						" \"name\": \"Shin Chan\","
				+ 						"\"age\": 25 "
				+					"}";
		String responseStringPost = testCustomerServiceForPostRequest(httpPostURL, requestStringInJson);
		System.out.println("POST >> Response String : " + responseStringPost);
	}

	/**
	 * using ClientRequest and ClientResponse classes from org.jboss.resteasy.client
	 * @param httpURL
	 * @return responseString
	 * @throws Exception
	 */
	@SuppressWarnings("deprecation")
	public static String testCustomerServiceForGetRequest(String httpURL) throws Exception {

		// local variables
		ClientRequest clientRequest = null;
		ClientResponse<String> clientResponse = null;
		int responseCode;
		String responseString = null;

		try{
			clientRequest = new ClientRequest(httpURL);
			clientRequest.setHttpMethod(HttpMethod.GET);
			clientRequest.header("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			clientRequest.accept(MediaType.APPLICATION_JSON);
			clientResponse = clientRequest.get(String.class);

			responseCode = clientResponse.getResponseStatus().getStatusCode();
			System.out.println("Response code: " + responseCode);

			if(clientResponse.getResponseStatus().getStatusCode() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + clientResponse.getResponseStatus().getReasonPhrase());
			responseString = clientResponse.getEntity();
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			clientResponse.close();
			clientRequest.clear();
		}
		return responseString;
	}

	/**
	 * using ResteasyClient, ResteasyWebTarget and Response classes from org.jboss.resteasy.client
	 * @param httpURL
	 * @param requestString
	 * @return
	 */
	public static String testCustomerServiceForPostRequest(String httpURL, String requestString)  throws Exception {

		// local variables
		ResteasyClient resteasyClient = null;
		ResteasyWebTarget resteasyWebTarget = null;
		Response response = null;
		int responseCode;
		String responseString = null;

		try{
			resteasyClient = new ResteasyClientBuilder().build();
			resteasyWebTarget = resteasyClient.target(httpURL);
			//			resteasyWebTarget.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
			//			resteasyWebTarget.property("accept", MediaType.APPLICATION_XML);
			response = resteasyWebTarget.request(MediaType.APPLICATION_FORM_URLENCODED).post(Entity.entity(requestString, MediaType.APPLICATION_JSON));

			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + response.getStatusInfo().getReasonPhrase());
			responseString = response.readEntity(String.class);
		}
		catch(Exception ex){
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
		}
		return responseString;
	}
}

Output in console

Invoking and executing getCustomer service for customer id 45001
Response code: 200
ResponseMessageFromServer: OK
GET >> Response String : {"customerId":45001,"name":"Picolo","age":65}


Invoking and executing addCustomer service with request
Response code: 200
ResponseMessageFromServer: OK
POST >> Response String : Customer information saved successfully with Customer_ID 45011

Note: Study java client and do necessary changes to test other exposed services

Download project (Tomcat Server 7.0.x)

RestEasy-Spring-MVC-Integration(Tomcat server) (16kB)

JBoss Deployment

Update pom.xml with resteasy scope “provided” for dependencies as JBoss AS7 modules already contains these dependent jars
```
<resteasy.scope>provided</resteasy.scope>
```
Rest remain the same
Read through this article which explains development & deployment of RestEasy web service with JBoss Application Server in detail

Note: JBoss Application Server 7.1.1.Final comes with default RestEasy distribution with version 2.3.2.Final. So update JBoss AS7 with latest RestEasy version. Look at this article, which explains how to update default version with latest version available in the JBoss community

Download project (JBoss Application Server 7.1.1.Final)

RestEasy-Spring-MVC-Integration (JBoss server) (16kB)

Conclusion: With RestEasy + Spring MVC framework, exposed methods annotated with @Controller acts as both REST resource as well MVC controller method. It depends on the business requirement on how clients want to interact with this application

Happy Coding !!
Happy Learning !!
