RestEasy: JAX-RS web service using @PathParam annotation + JBoss AS7

In this article, we will learn and implement @PathParam annotation in JAX-RS Restful web service. Using @PathParam, you can map/bind values of the URL parameter with formal arguments of the Java method

JBoss RestEasy is a JAX-RS implementation for developing Restful web service in java. Once developed, it isn’t restricted to deploy only in JBoss Application Server but you can deploy in any other server like Apache Tomcat, Glassfish, Oracle Weblogic, etc

Annotation Used

@PathParam (javax.ws.rs.PathParam)
@Path (javax.ws.rs.Path)
@GET (javax.ws.rs.GET)

Technology Used

Java 1.7
Eclipse Luna IDE
RestEasy-3.0.8.Final
Apache Maven 3.2.1
JBoss Application Server 7.1.1.Final

Mavenize or download required jars

Add RestEasy-3.0.8.Final dependencies to pom.xml

	<properties>
		<resteasy.version>3.0.8.Final</resteasy.version>
		<resteasy.scope>provided</resteasy.scope> <!-- compile(Tomcat) / provided(JBoss) -->
		<compileSource>1.7</compileSource>
		<maven.compiler.target>1.7</maven.compiler.target>
		<maven.compiler.source>1.7</maven.compiler.source>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<dependencies>
		<!-- RESTEasy JAX RS Implementation -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-jaxrs</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- Resteasy Servlet Container Initializer -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-servlet-initializer</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>

		<!-- RESTEasy JAX RS Client -->
		<dependency>
			<groupId>org.jboss.resteasy</groupId>
			<artifactId>resteasy-client</artifactId>
			<version>${resteasy.version}</version>
			<scope>${resteasy.scope}</scope>
		</dependency>
	</dependencies>

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Note: These jars won’t go inside war file. Only available in the development environment

JBoss RestEasy

As described in the beginning, it is a JAX-RS implementation for developing Restful web service. It’s a JSR 311 specification

There are three approaches available when you are deploying war in JBoss Application Server

Subclassing javax.ws.rs.core.Application and using @ApplicationPath
Subclassing javax.ws.rs.core.Application and using web.xml
Using web.xml (specially, if you don’t want to subclass Application)

A detailed explanation by Stuart Douglas at JBoss JAX-RS Reference guide

We are going to use third approach, as having web.xml is pretty useful when your application is scalable like integrating with other top JEE frameworks like Spring, Struts, Hibernate, etc

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for RestEasy JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

http requests with URL pattern “/resteasy/*” will be sent to the registered servlet called “javax.ws.rs.core.Application” and this in-turn handled by JBoss application server in dispatching request to the correct JAX-RS annotated classes
<welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<display-name>RestEasy-PathParam</display-name>

	<!-- RestEasy Servlet -->
	<servlet-mapping>
		<servlet-name>javax.ws.rs.core.Application</servlet-name>
		<url-pattern>/resteasy/*</url-pattern>
	</servlet-mapping>

	<!-- welcome file -->
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>
</web-app>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into JBoss Application Server 7.1.1.Final server, so our server and port are localhost and 9090 respectively. Context root is the project name i.e.; RestEasy-PathParam. Initial path for this application is http://localhost:9090/RestEasy-PathParam

We have configured “/resteasy/*” as url-pattern for the “javax.ws.rs.core.Application” servlet in web.xml and at interface-level (or say class-level) path configured is “/customer” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Customer Service interface

Using @PathParam, value of the URL parameter are mapped into formal arguments of the Java methods

First method takes one-argument using @PathParam annotation (single parameter) which its maps to formal argument “custname”
URL: http://localhost:9090/RestEasy-PathParam/resteasy/customer/welcome/Harry
In this case, value “Harry” will be copied to custname argument
Whereas Second method takes three-arguments using @PathParam annotation (multiple parameter)
URL: http://localhost:9090/RestEasy-PathParam/resteasy/customer/custinfo/10001/chris/29
Similarly, 10001 is copied to id argument, “chris” is copied to name argument and “29” is copied to age argument

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

ICustomerService.java

package com.resteasy.series.pathparam;

import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.core.Response;

@Path("/customer")
public interface ICustomerService {

	// http://localhost:8080/RestEasy-PathParam/resteasy/customer/welcome/Harry - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-PathParam/resteasy/customer/welcome/Yuvan - JBoss AS7
	@GET
	@Path("/welcome/{custname}")
	public Response welcomeCustomer(@PathParam("custname") String userName);

	// http://localhost:8080/RestEasy-PathParam/resteasy/customer/custinfo/10001/chris/29  - Tomcat 7.0.x
	// http://localhost:9090/RestEasy-PathParam/resteasy/customer/custinfo/10002/clarke/34 - JBoss AS7
	@GET
	@Path("/custinfo/{id}/{name}/{age}")
	public Response printCustomerInfo(
			@PathParam("id") String custId,
			@PathParam("name") String custName,
			@PathParam("age") String custAge);
}

Customer Service implementation

Implements above interface returning Response object for both methods

CustomerServiceImpl.java

package com.resteasy.series.pathparam;

import javax.ws.rs.core.Response;

public class CustomerServiceImpl implements ICustomerService {

	@Override
	public Response welcomeCustomer(String userName) {

		String welcomeMsg = "Welcome " + userName;
		return Response.status(200).entity(welcomeMsg).build();
	}

	@Override
	public Response printCustomerInfo(String custId, String custName, String custAge) {

		String customerInfo = "Customer [Id=" + custId +  ", Name=" + custName + ", Age=" + custAge + "]";
		return Response.status(200).entity(customerInfo).build();
	}
}

Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
There are two ways to deploy war file into JBoss Application Server 7
1. Online
2. Offline

Click here to understand above deployments process in detail

Test the service !!

Testing

There are many ways to do testing

Copy the URL of GET service into web browser
Advanced REST client from Google Chrome
Rest client in Mozilla Firefox Add On
Write your own client for example, Java client using improved CloseableHttpClient from Apache
JDK’s in-built classes like HttpURLConnection
Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client
Using ResteasyClient, ResteasyWebTarget and Response classes from JBoss package org.jboss.resteasy.client
Using ClientRequest and ClientResponse classes from JBoss package org.jboss.resteasy.client

1. Hit the web browser with GET URL

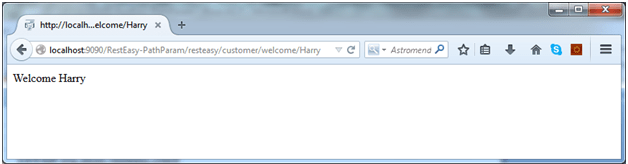

First Method:
Enter URL http://localhost:9090/RestEasy-PathParam/resteasy/customer/welcome/Harry

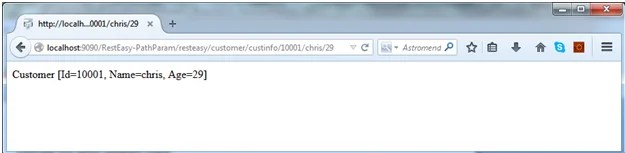

Second Method:
Enter URL http://localhost:9090/RestEasy-PathParam/resteasy/customer/custinfo/10001/chris/29

2. Using Advanced Rest client from Google Chrome

First Method:
Enter URL http://localhost:9090/RestEasy-PathParam/resteasy/customer/welcome/Harry

Second Method:
Enter URL http://localhost:9090/RestEasy-PathParam/resteasy/customer/custinfo/10001/chris/29

3. Java client (RestEasy)

There are two test clients which comes from JBoss RestEasy package org.jboss.resteasy.client and org.jboss.resteasy.client.jaxrs

ClientRequest and ClientResponse for single parameter invocation
ResteasyClient, ResteasyClientBuilder and ResteasyWebTarget for multiple parameter invocation

Note: above clients can be interchanged. No restriction, only needs to set correct http request parameters

TestCustomerService.java

package test.resteasy.series.pathparam;

import javax.ws.rs.HttpMethod;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.jboss.resteasy.client.ClientRequest;
import org.jboss.resteasy.client.ClientResponse;
import org.jboss.resteasy.client.jaxrs.ResteasyClient;
import org.jboss.resteasy.client.jaxrs.ResteasyClientBuilder;
import org.jboss.resteasy.client.jaxrs.ResteasyWebTarget;

public class TestCustomerService {

	public static void main(String[] args) throws Exception {

		// setting & invoking first request
		System.out.println("Executing first service with single parameter");
		String url = "http://localhost:9090/RestEasy-PathParam/resteasy/customer/welcome/Yuvan";
		String responseString = testCustomerServiceForSingleParameter(url);
		System.out.println("Response String for First Service : " + responseString);

		// setting & invoking second request
		System.out.println("\n\nExecuting second service with multiple parameter");
		String url3 = "http://localhost:9090/RestEasy-PathParam/resteasy/customer/custinfo/10002/clarke/34";
		String responseString3 = testCustomerServiceWithMultipleParameters(url3);
		System.out.println("Response String for Second Service : " + responseString3);
	}

	/**
	 * using ClientRequest and ClientResponse classes from  org.jboss.resteasy.client
	 * @param url
	 * @throws Exception
	 */
	@SuppressWarnings("deprecation")
	public static String testCustomerServiceForSingleParameter(String url) throws Exception {

		// local variables
		ClientRequest clientRequest = null;
		ClientResponse<String> clientResponse = null;
		int responseCode;
		String responseString = null;

		try{
			clientRequest = new ClientRequest(url);
			clientRequest.setHttpMethod(HttpMethod.GET);
			clientRequest.accept(MediaType.APPLICATION_FORM_URLENCODED);
			clientResponse = clientRequest.get(String.class);

			responseCode = clientResponse.getResponseStatus().getStatusCode();
			System.out.println("Response code: " + responseCode);

			if(clientResponse.getResponseStatus().getStatusCode() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + clientResponse.getResponseStatus().getReasonPhrase());
			responseString = clientResponse.getEntity();
		}
		catch(Exception ex) {
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			clientResponse.close();
			clientRequest.clear();
		}
		return responseString;
	}

	/**
	 * using ResteasyClient, ResteasyWebTarget and Response classes from org.jboss.resteasy.client
	 * @param url
	 */
	public static String testCustomerServiceWithMultipleParameters(String url) {

		// local variables
		ResteasyClient resteasyClient = null;
		ResteasyWebTarget resteasyWebTarget = null;
		Response response = null;
		int responseCode;
		String responseString = null;

		try{
			resteasyClient = new ResteasyClientBuilder().build();
			resteasyWebTarget = resteasyClient.target(url);
			response = resteasyWebTarget.request().get();

			responseCode = response.getStatus();
			System.out.println("Response code: " + responseCode);

			if (response.getStatus() != 200) {
				throw new RuntimeException("Failed with HTTP error code : " + responseCode);
			}

			System.out.println("ResponseMessageFromServer: " + response.getStatusInfo().getReasonPhrase());
			responseString = response.readEntity(String.class);

		}
		catch(Exception ex){
			ex.printStackTrace();
		}
		finally{
			// release resources, if any
			response.close();
		}
		return responseString;
	}
}

Output in console

Executing first service with single parameter
Response code: 200
ResponseMessageFromServer: OK
Response String for First Service : Welcome Yuvan


Executing second service with multiple parameter
Response code: 200
ResponseMessageFromServer: OK
Response String for Second Service : Customer [Id=10002, Name=clarke, Age=34]

Conclusion: With @PathParam annotation, you can retrieve URL parameter values appended at the end and map it to the corresponding formal arguments of the Java methods

Few things, before we proceed with RestEasy series

All the upcoming/following articles in this RestEasy series will be developed/deployed in Apache Tomcat 7.0.54
Secondly, last section of the following articles in this RestEasy series will explain what are the changes required to deploy and execute/test on the JBoss Application Server 7.1.1.Final environment

Download project

RestEasy-@PathParam-annotation (JBoss AS7) (9kB)

Happy Coding !!
Happy Learning !!

BenchResources.Net

Java tutorial for beginners

RestEasy: JAX-RS web service using @PathParam annotation + JBoss AS7

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

JBoss RestEasy

Web application

web.xml (the entry point –> under WEB-INF)

web.xml

Let’s see coding in action

URL Pattern

Customer Service interface

ICustomerService.java

Customer Service implementation

CustomerServiceImpl.java

Deployment

Testing

1. Hit the web browser with GET URL

2. Using Advanced Rest client from Google Chrome

3. Java client (RestEasy)

TestCustomerService.java

Output in console

Few things, before we proceed with RestEasy series

Download project

Related

Annotation Used

Technology Used

Mavenize or download required jars

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

JBoss RestEasy

Web application

web.xml (the entry point –> under WEB-INF)

web.xml

Let’s see coding in action

URL Pattern

Customer Service interface

ICustomerService.java

Customer Service implementation

CustomerServiceImpl.java

Deployment

Testing

1. Hit the web browser with GET URL

2. Using Advanced Rest client from Google Chrome

3. Java client (RestEasy)

TestCustomerService.java

Output in console

Few things, before we proceed with RestEasy series

Download project

Related

Related posts:
